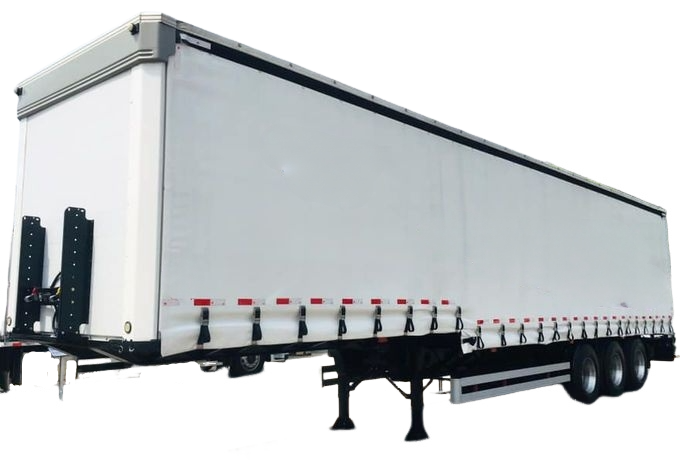

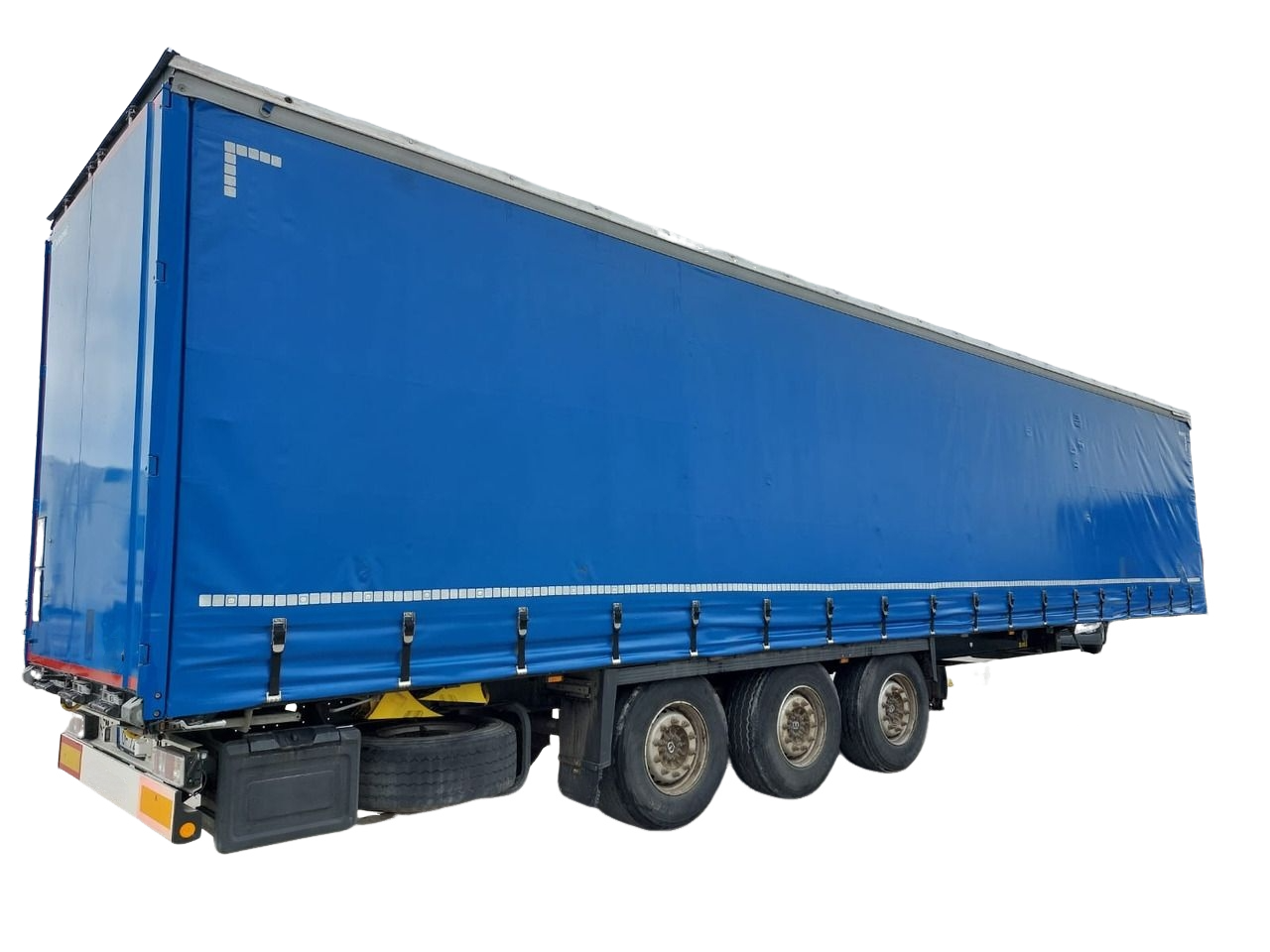

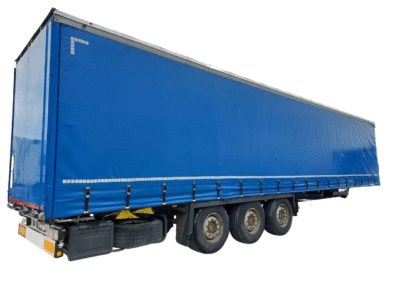

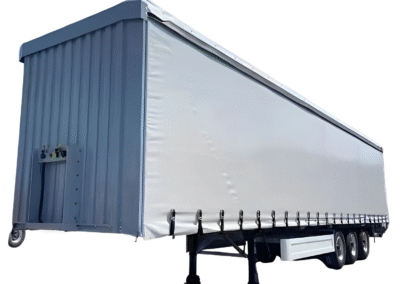

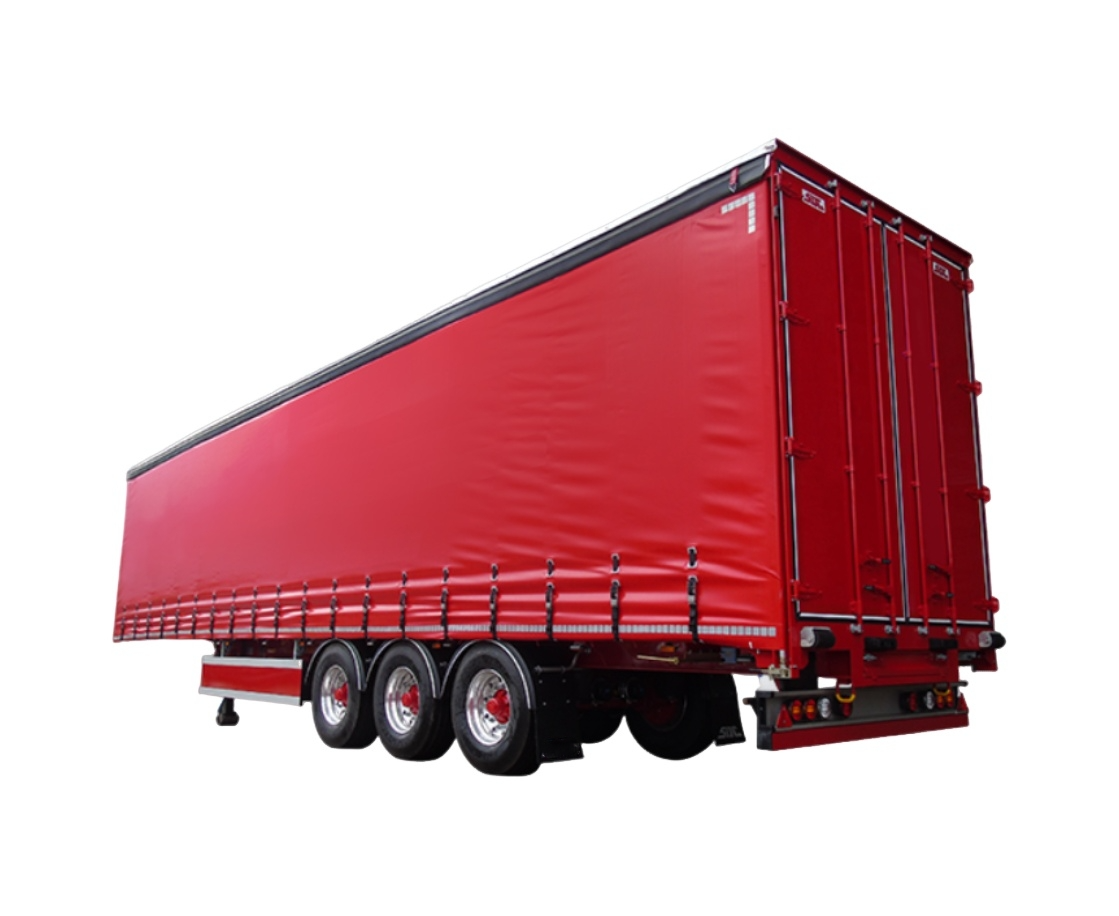

Three axle cargo curtain side semi-trailer

General Information

Our three axle cargo curtain side semi-trailers combine design with practical precision manufacturing, using solid steel to increase cargo capacity by 20%. The special curtainside system reduces loading time by 40%, and is waterproof, wear-resistant, and has a long service life to ensure cargo safety. Compared with traditional semi-trailers, our curtain side trailers also have lower fuel consumption and can save 15% of fuel. This means significant cost savings for truck fleet owners. We can customize each semi-trailer according to your cargo needs.

Load:

40T

Overall Dimensions:

13m*2.5m*4m

Tires:

1200R22.5*12sets

Suspension:

Mechanical suspension

Detailed Specs

Specification
Type curtain side semi-trailer Air Chamber 6 sets
Brake Valve Specification 3-axle synchronization Landing Gear Single action, 28T
Load 40T Bottom Plate Type/Thickness Patterned, 2.0mm
Leaf Spring 10 pieces Overall Dimensions 13m*2.5m*4m
Pillar Removable, 4 on each side Tires 1200R22.5*12sets
Dimensions of Cargo Box 12.8m*2.5m*2.4m Toolbox 1 standard type
Tightening Rope Standard Suspended Beam Mechanical suspension
Main Beam Style Straight beam Kingpin 12.8m*2.5m*2.4m
Suspension Mechanical suspension Side reinforced PVC curtains
Note This specification is for reference only. We can customize it according to your needs.



Our three axle cargo curtain side semi-trailer is an efficient tool designed to meet diverse cargo transportation needs. With its flexible design and sturdy structure, it is suitable for a variety of scenarios, including agriculture, construction, logistics distribution, etc., and can help you easily cope with different types of cargo transportation challenges. The following are common usage scenarios for three axle cargo curtain side semi-trailer:

  1. Building Materials and Construction Logistics
    With a sturdy chassis, our three-axle cargo curtain side semi-trailer is used for the transportation of heavy construction materials, wood, pipes, mechanical parts, etc. It can be loaded from any angle. We offer extended lumber and steel transportation solutions, and can customize the vehicle according to your needs. Construction teams appreciate its high weight limit and weatherproof performance. This can effectively prevent delays and damage caused by weather when transporting materials to the construction site.
  2. Retail Distribution Networks
    Our double-deck loading boosts capacity by 30% for light, bulky items. The side-curtain design makes loading/unloading easy at stores without loading docks. We offer built-in lift gates for places without forklifts. At the same time, these side curtains also have the effect of mobile billboards. Retail chains tell me they see 38% better distribution and 25% less handling damage with our trailer fleet.
  3. Beverage and Food Distribution
    For warm food and drinks, we offer insulated curtains that keep cargo within 5°C of outside temperature. Our strong flooring can handle heavy beverage cargo. The securing systems keep loads from shifting during travel. The quick-release curtains make side access easy for mixed loads going to multiple stops. Drink distributors tell me they finish deliveries 42% faster and see 30% less damage than with old methods.
  4. General Distribution and Logistics
    Our curtain side semi-trailers work great for distribution networks with many loading/unloading stops. Our quick-release system cuts stop time by 30%, so drivers finish more deliveries each shift. The easy side access makes handling mixed loads and pallets simple. Our strong body and frame holds secure systems for fragile items. Fleet users tell me they get 27% better delivery speed and fewer damage claims after switching to our solutions.
  5. Event Logistics and Exhibition Transport
    Our curtain side semi-trailers are ideal for transporting sensitive event equipment that needs to be weatherproof and easy to load. Using a curtain side trailer of the right size and capacity, with sturdy tie-down points, delicate electronic equipment can be secured. Weatherproof curtainsides protect valuable exhibit materials while making loading and unloading in hard-to-reach locations easy. Event companies report a 32% reduction in stand set-up time and significantly less shipping damage when using our curtain side semi-trailers.

 Low fuel consumption

We helped DANGOTE company save 20,000 liters of diesel per truck over three years of transportation, with the fuel consumption controlled at a minimum of 4-4.5 kilometers per liter (for a 30-ton semi-trailer load).









Maintenance costs reduced

High-quality products with annual maintenance costs as low as USD 0.04 per kilometer.





Other Semi-trailer

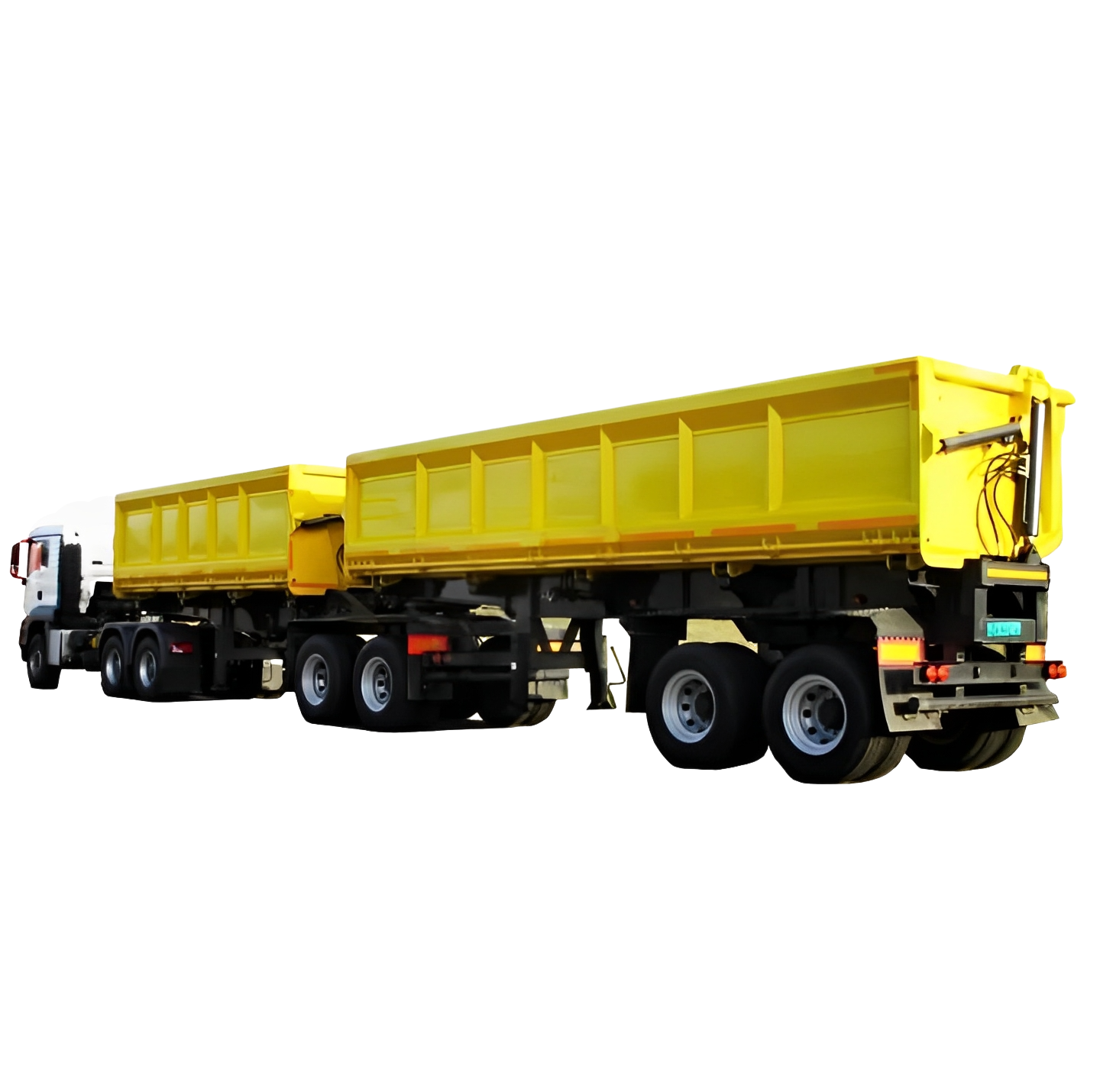

Double trailer semi truck
