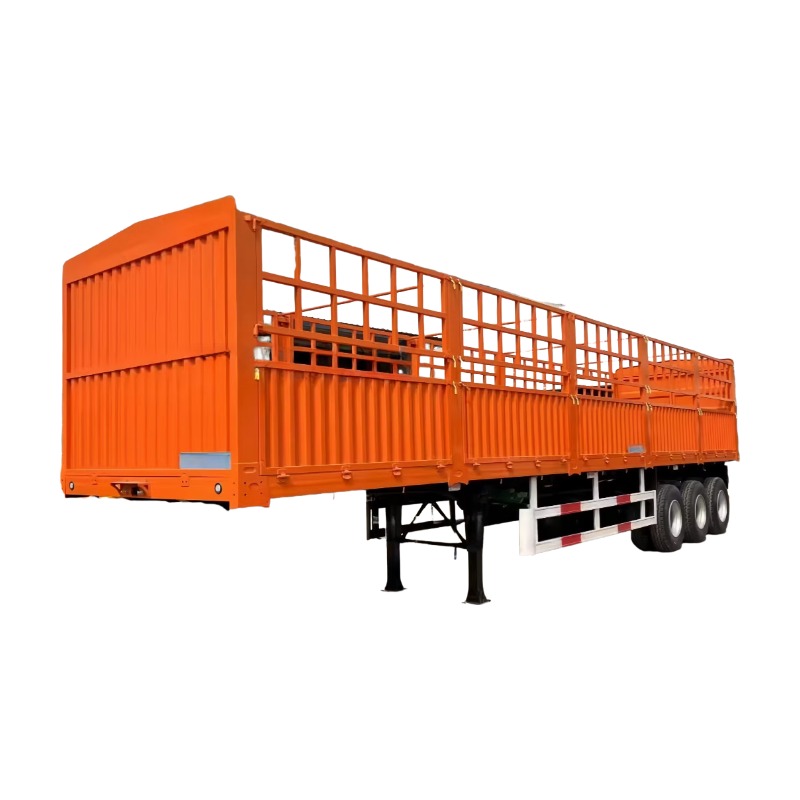

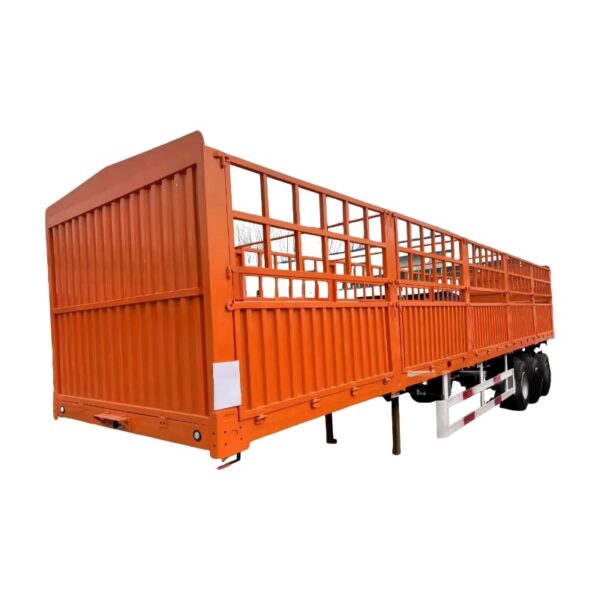

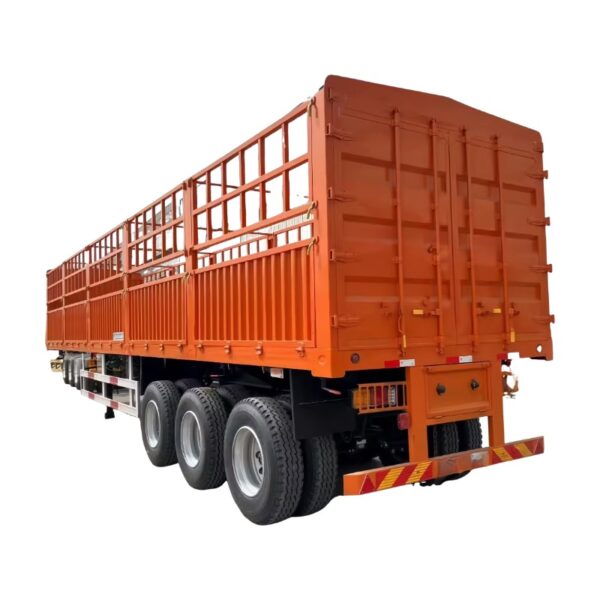

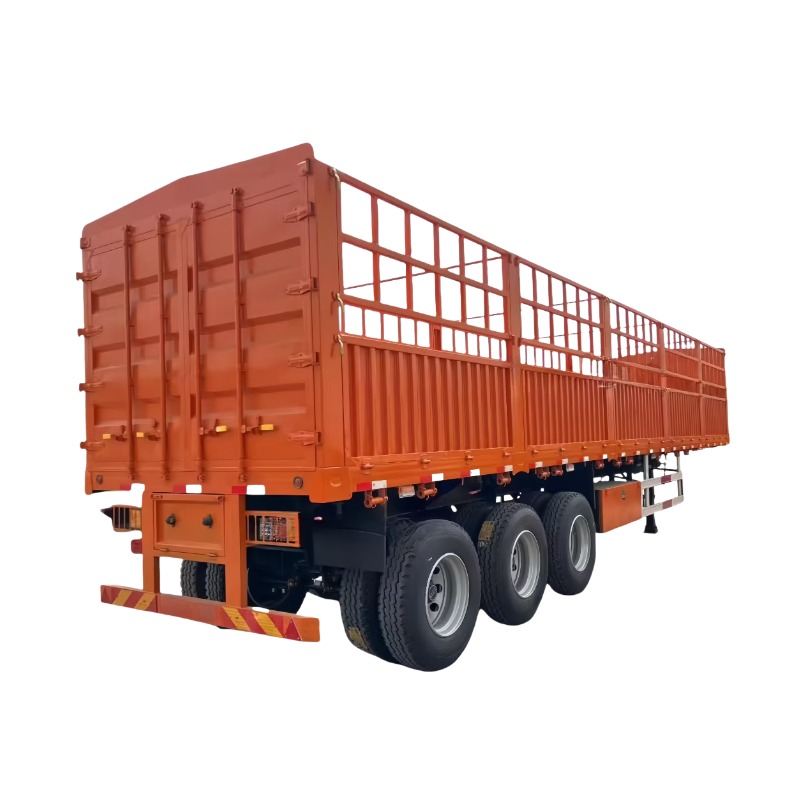

3 Axle 50 Ton Fence Semi Trailer for Heavy Loads
Load Capacity: 50 tons
Structural Steel Grade: Q345B, 450-550 MPa tensile strength
Chassis Fatigue Rating: 2 million cycles at maximum load (35% higher than the industry standard)
Stopping Distance: 12.5 meters from 60 km/h when fully loaded
Service Life Expectancy: Over 15 years with proper maintenance
Automated precision welding technology with digital quality verification in compliance with ISO 3834-2 welding quality standards.
Fence Semi Trailer Specifications
| Type | Fence Semi Trailer |
| Certification | ISO9001,CCC,ISO/TS16949 |
| Tread | 1820mm |
| Wheel Base | 7000-8000mm |
| Grade | Heavy Duty |
| Types of Suspension Systems | Leaf Spring Suspension |
| Axle Number | 2/3/4/Customizable |
| Self-dumping | Self-dumping |
| Material | Steel |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Tire Number | 13 |
| Specification | 13000*2500*3990mm |
| Vehicle weight | 9.5 Ton |
| Loading Capacity | 50 Ton |
| Tyre | 12R22.5 |
| Main Beam | Height 500 Q345 carbon steel |
| Tool Box | One tool box with a set of standard trailer tools |
