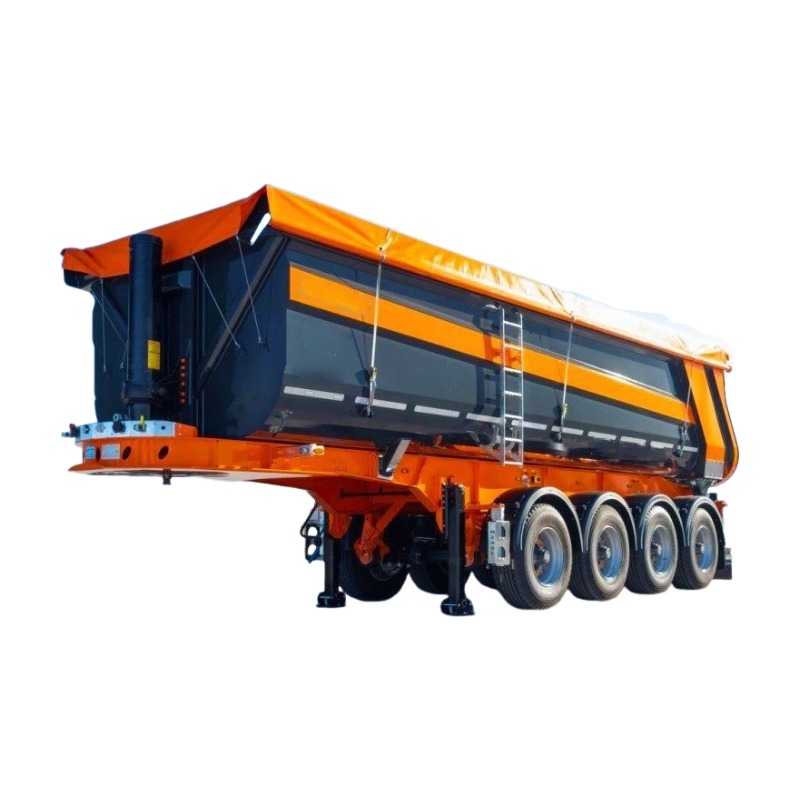

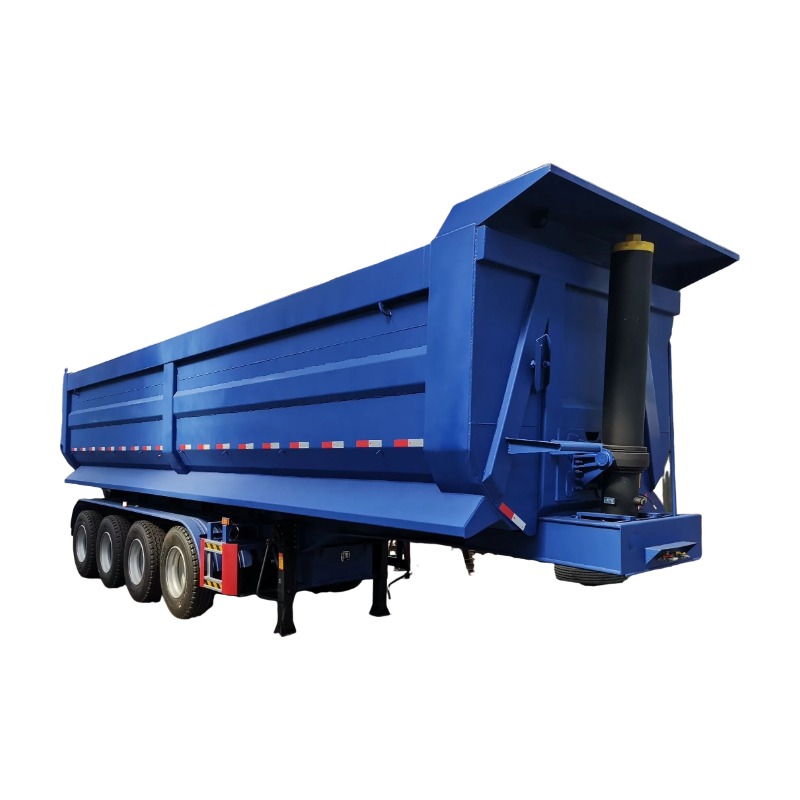

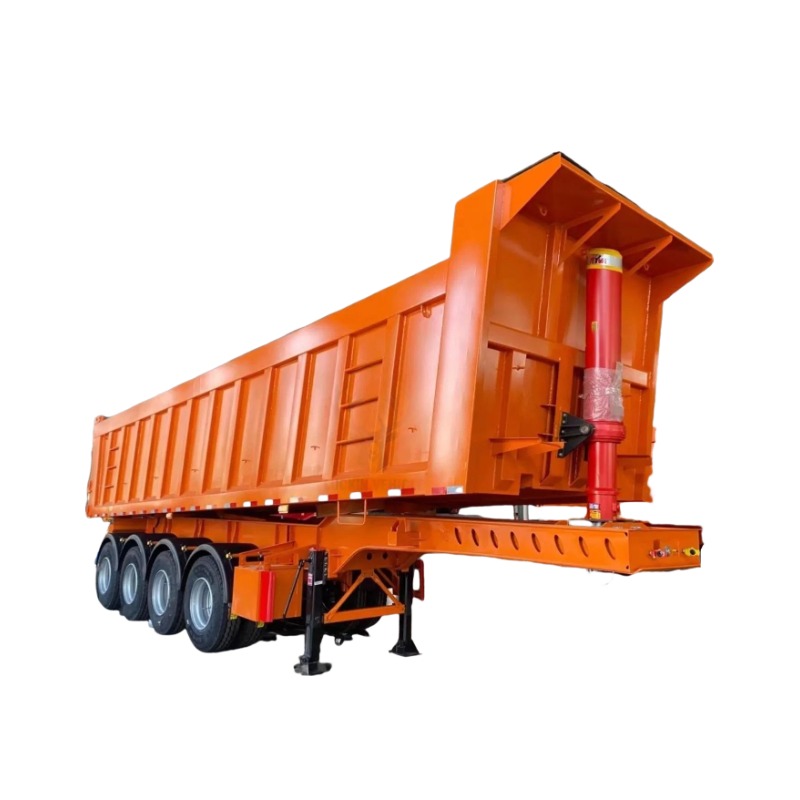

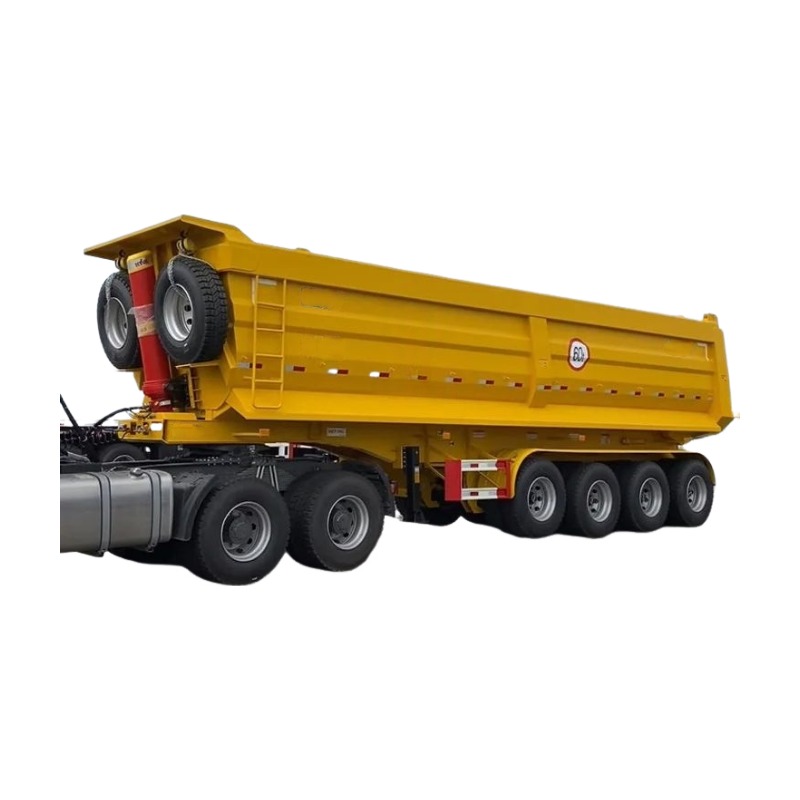

4 Axle 100 Ton End Dump Trailer for Aggregate and Mining Industries
- Optimized Tipping Mechanism: A powerful hydraulic system enables precise loading and unloading of loads with fast cycle times, improving operational efficiency.
- Extended Service Life: Constructed with wear-resistant materials and replaceable liners, it withstands the abrasive nature of mining materials, significantly reducing maintenance costs.
- Safety-First Design: Comprehensive safety features, including a stability control system, a reinforced tipping mechanism, and easy-to-use controls, ensure safe operation in harsh environments.
End Dump Trailer Specifications
| Type | End Dump Trailer |
| Load Capacity | 100T |
| Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949 |
| Tread | 1820mm |
| Wheel Base | 7000-8000mm |
| Types of Suspension Systems | Leaf Spring Suspension |
| Grade | Heavy Duty |
| Axle Number | 2/3/4/5/6 |
| Shape | U Shape |
| Self-dumping | Self-dumping |
| Tire Number | 12/16 |
| Material | Steel |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Volume (Cbm) | 20 to 50 Cbm |
| Tire | 11r22.5/12r22.5/11.00r20/12.00r20 |
