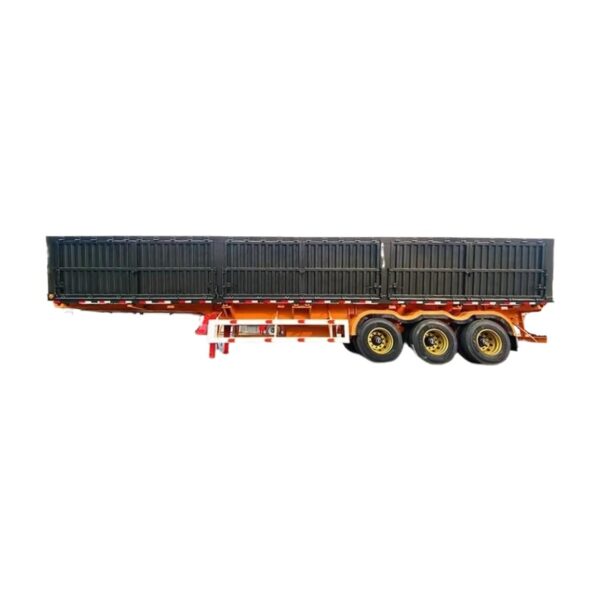

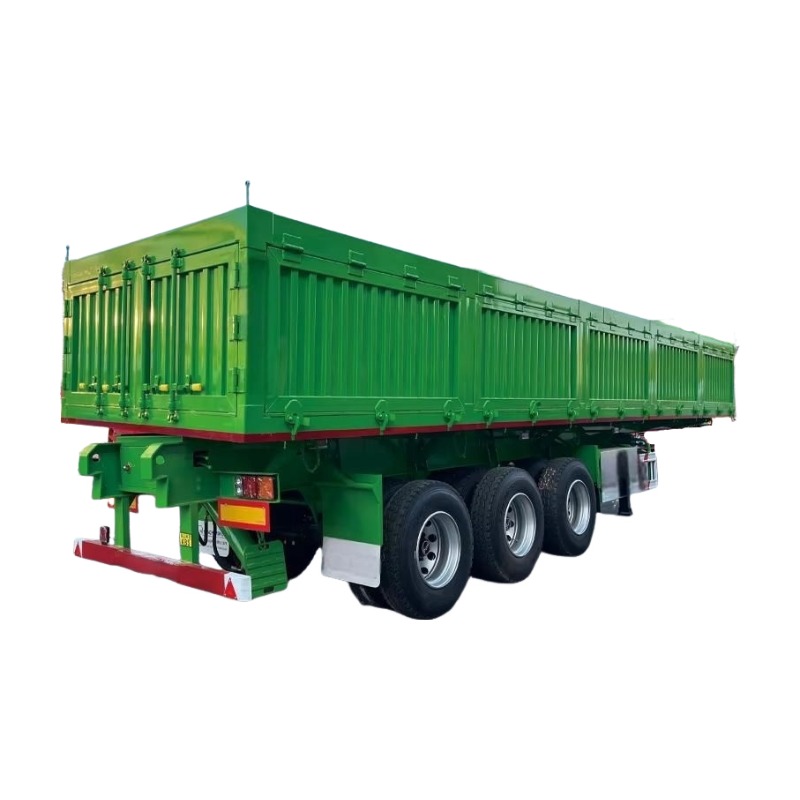

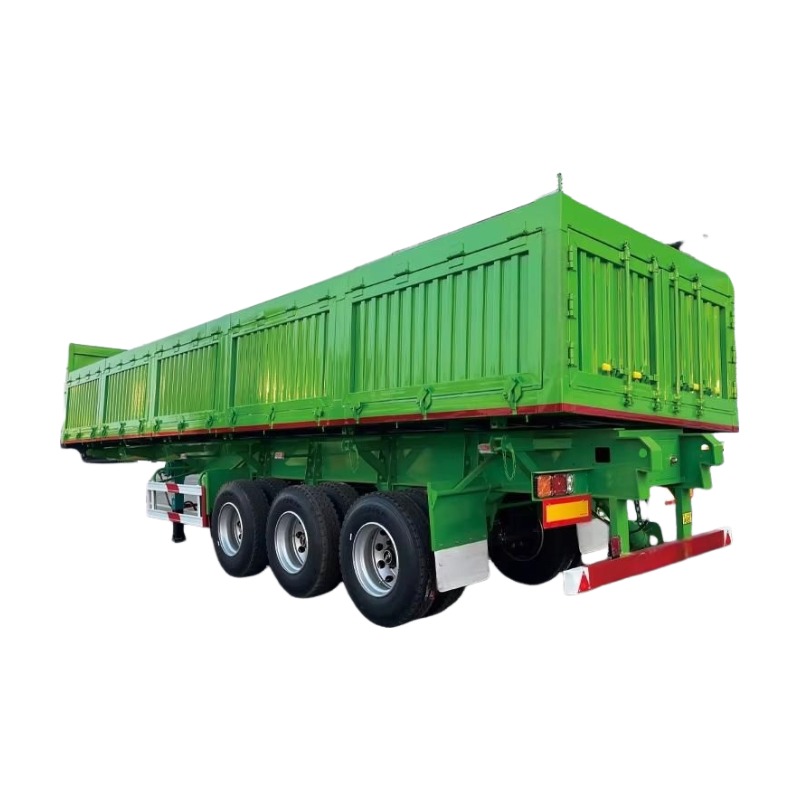

70 Ton Steel High Side Dump Trailer For Bulk Cargo Transportation
- With a rated load capacity of up to 70 tons, far exceeding that of standard vehicles, it can transport larger loads in a single trip, significantly reducing round trip frequency and directly improving operational efficiency and economic benefits.
- It features a high-level side-tip unloading design, and the hydraulic system operates smoothly and powerfully. The cargo box can be lifted to the side for unloading, eliminating the need for complex loading areas, expediting unloading and effectively preventing the risk of the vehicle overturning.
- The main structure is constructed of high-strength steel, with reinforcements in key areas, providing excellent impact and wear resistance.
High Side Dump Trailer Specifications
| Type | High Side Dump Trailer |
| Loading Capacity | 70T |
| Axle | 3 |
| Certification | ISO9001, CCC |
| Tread | 1820mm |
| Wheel Base | 9000-10000mm |
| Grade | Heavy Duty |
| Self-dumping | Self-dumping |
| Tire Number | 12 |
| Material | Steel |
| Shape | Van-type |
| Tire | 12R22.5 |
| King Pin | 2"(50mm)/3.5"(90mm) |
| Main Beam Spec | T700/Q345 Steel, Height:460-500mm, Plate Thickness:12-20mm |
| Steel Leaf Spring | 16mm*90*10pcs |
