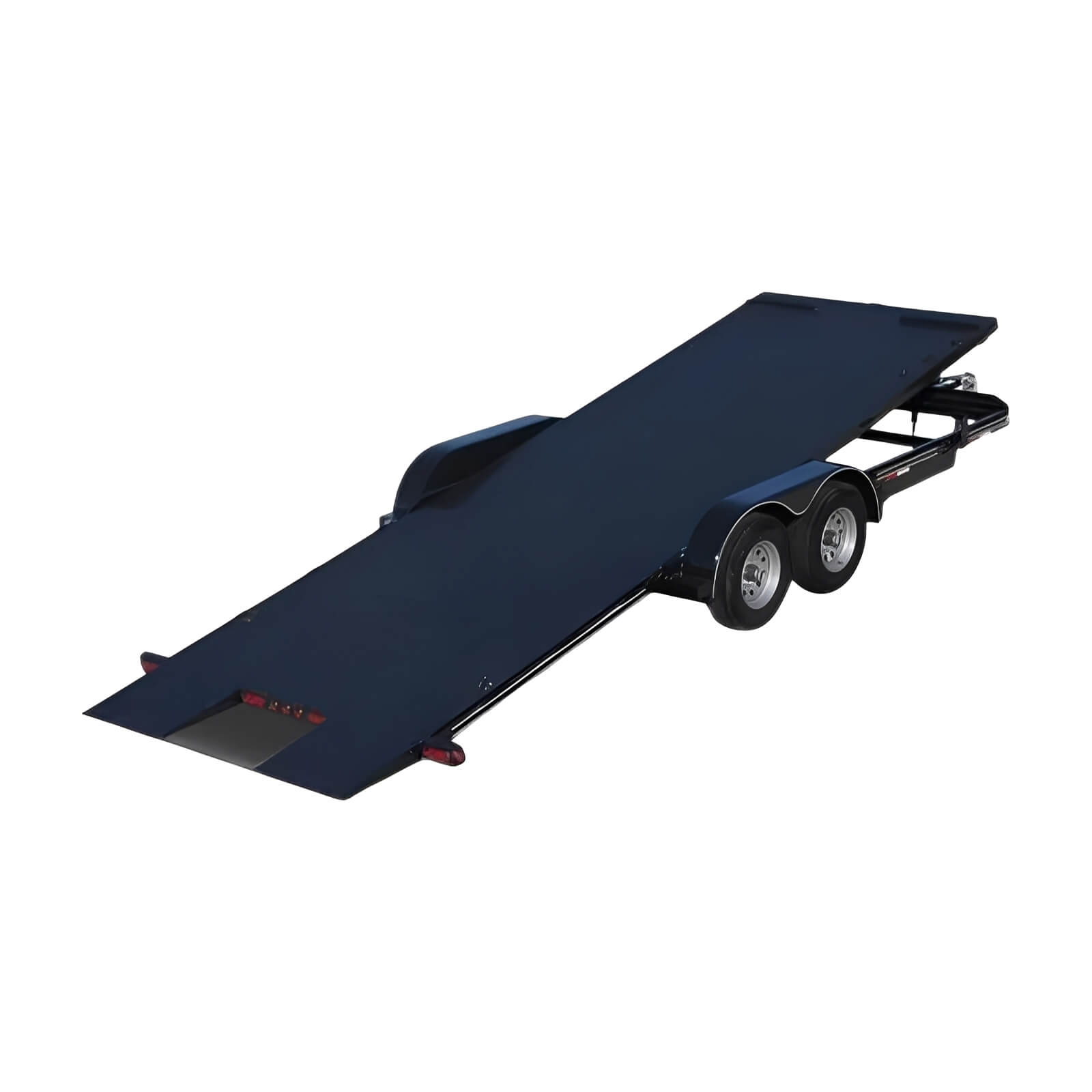

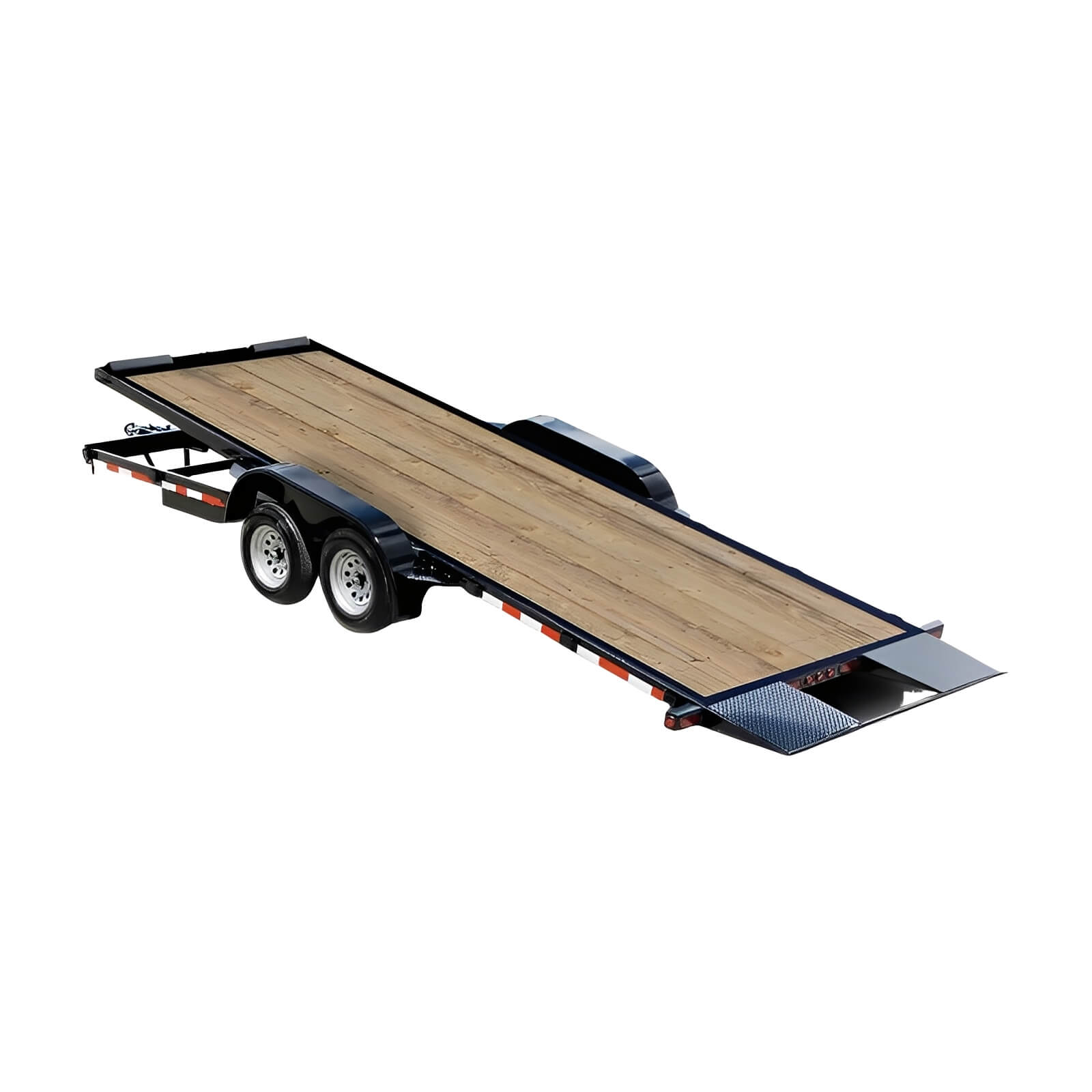

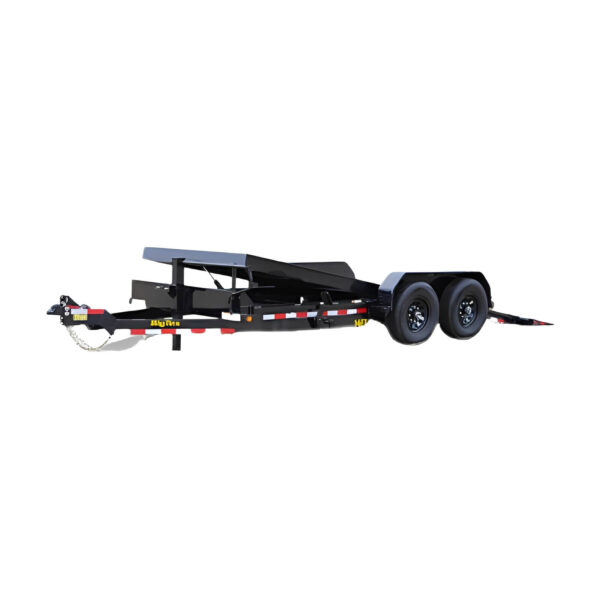

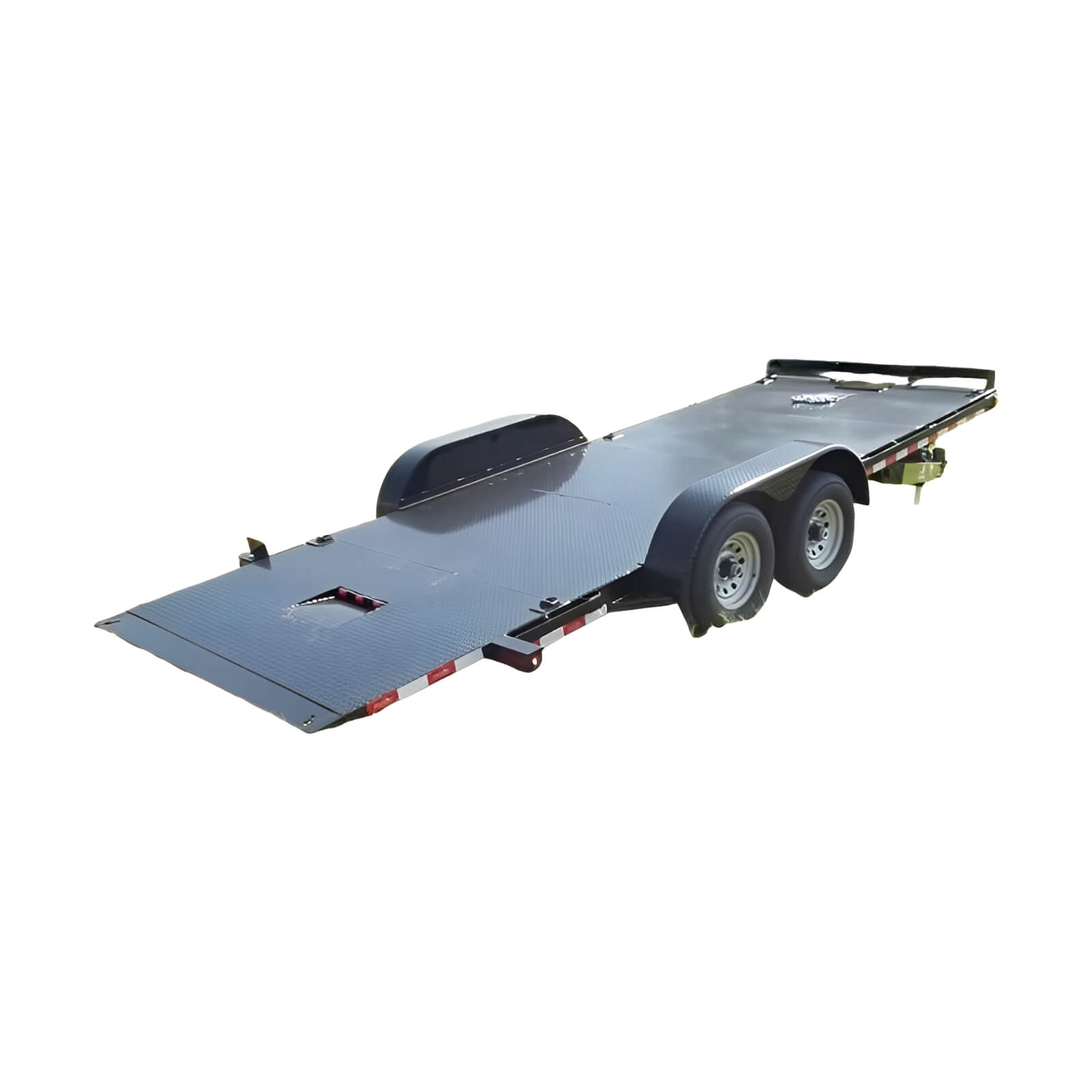

Heavy-Duty Double Axle Low Profile Tilt Trailer For Motorcycles And Atvs Transport
The sturdy dual-axle structure is designed to handle heavier loads and provides excellent stability during transport, allowing for customization to meet your needs.
The seamless transition from floor to deck eliminates the need for a separate loading ramp, while the reduced ramp angle facilitates safe vehicle entry and exit, making loading and unloading easier.
The high-quality materials and construction perfectly accommodate motorcycles, ATVs, and other vehicles, and are equipped with secure anchor points.
Tilt Trailer Specifications
Type | Tilt Trailer |
Certification | ISO/TS16949, CE |
Shape | Flatbed |
Loading Weight | 5T |
Self-dumping | Self-dumping |
Material | Steel/Aluminum |
Axle Number | 2 |
Tire | 185r14c Tires*4 |
Suspension Method | Leaf Spring Suspension / Torsion Axle |
Surface Treatment | Hot DIP Galvanized |
Lifting Method | Hydraulic Manual Lift |
Tare Weight | 750kg-1000kg |
Floor | 3mm Q235 Checker plate |
Ramp | 50*100mm RHS |
Brake | Electric Brake/Handle Brake |
