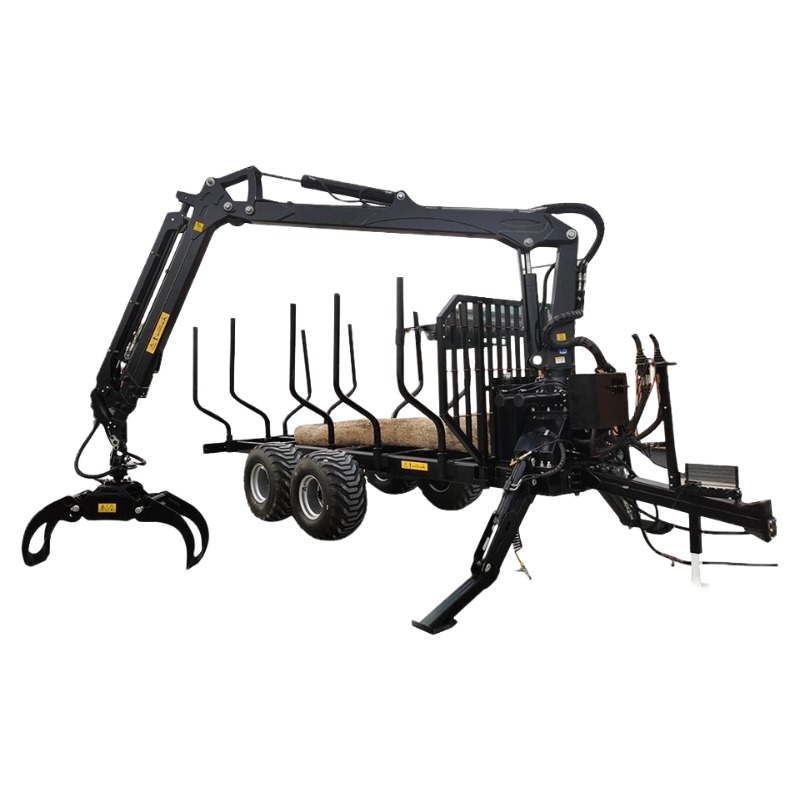

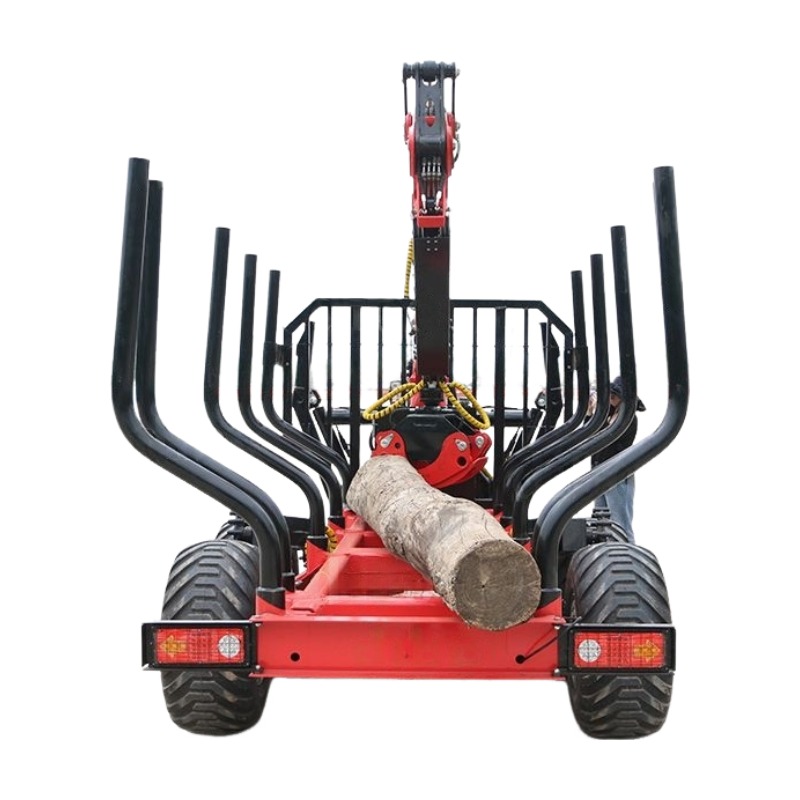

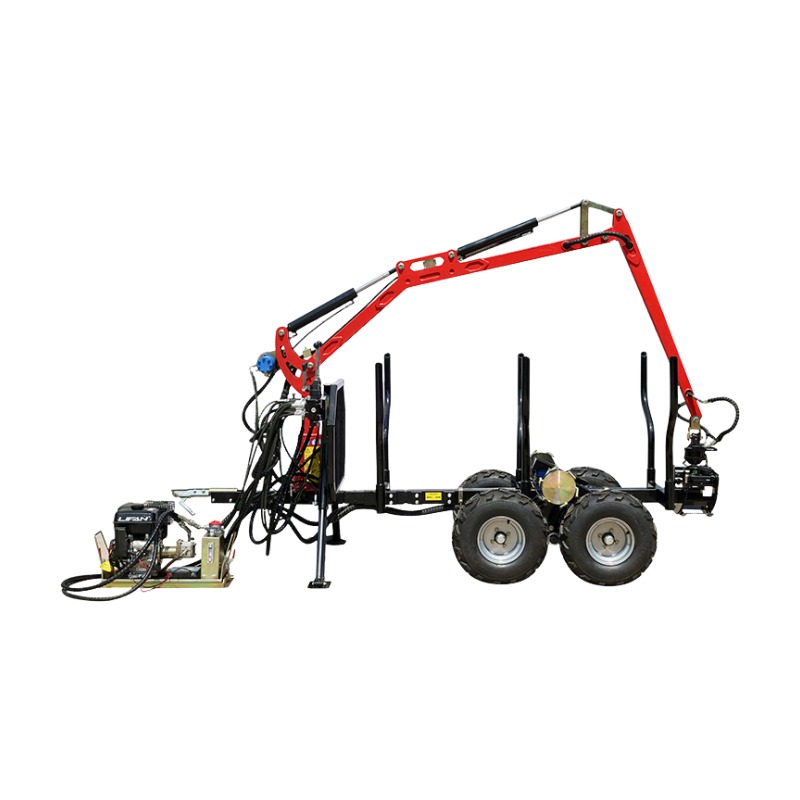

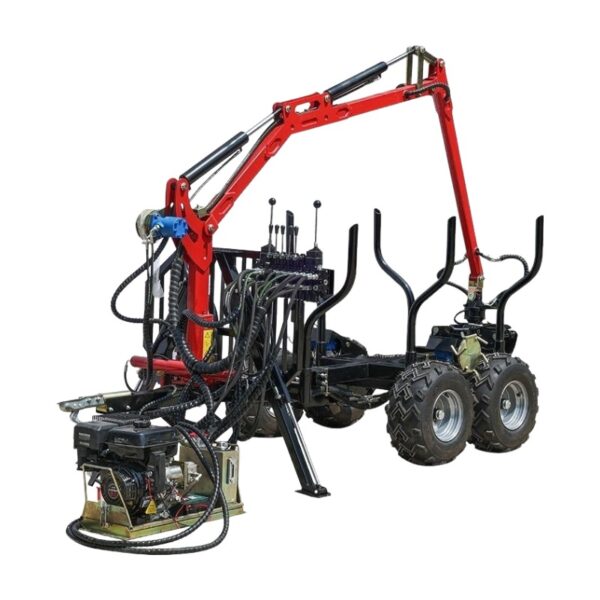

Heavy Duty Forestry Log Trailer With Grapple and Crane-Suitable For Tractors and ATVs
Rugged and durable, designed for harsh conditions: High-strength steel and reinforced construction easily handle the rigors of rough forest terrain and heavy log loads.
Integrated grapple and crane for one-stop operation: Powerful built-in hydraulic grippers and a stable crane enable all-in-one log grabbing, lifting, and transporting, saving time and effort.
Versatile and flexible deployment: Designed for use with tractors and all-terrain vehicles (ATVs), it’s versatile enough for use on large farms or rugged forest terrain.
Log Trailer Specifications
| Type | Log Trailer |
| Certification | ISO9001, CE, CCC, EPA |
| Power Source | Hydraulic, Gasoline, Diesel, Electric |
| Support Leg | a/W/H Type Support Leg |
| Arm Length | 4.7m, 5m, 5.5m, 6m, 6.5m, 7, 7.5m, 7.8m |
| Working Pressure | 16-22MPa |
| Application | logging |
| Main Girder Form | Double Girder |
| Max Reach | 11m |
| Max Loading | 16ton |
| Material | 750 Manganese Plate and Q460d |
| Fuel Tank | 4L |
| Working Temperature | -30c to 80c |
| Swing Angle | 90 degrees |
