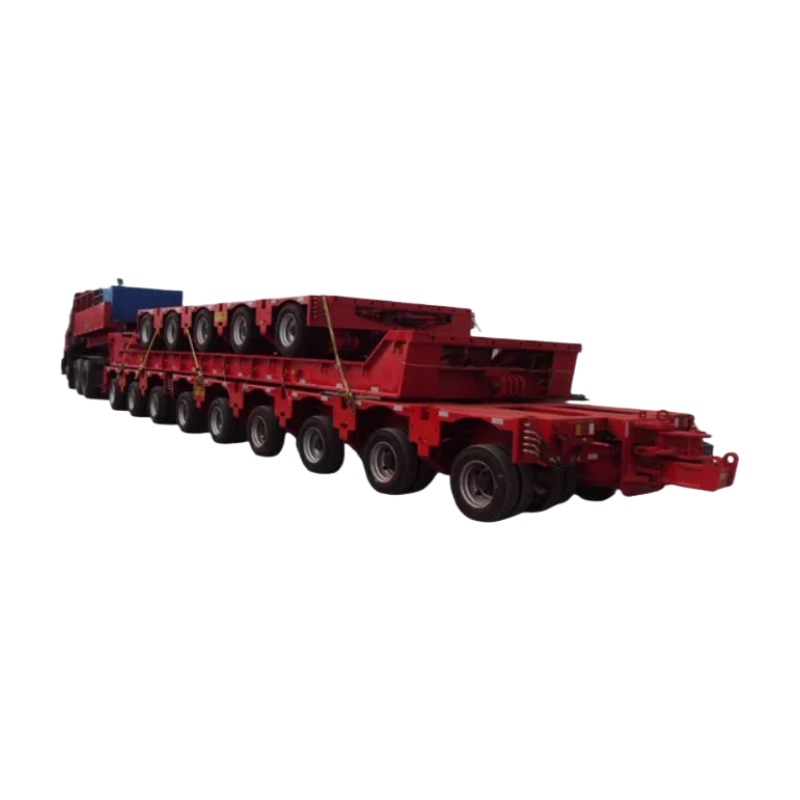

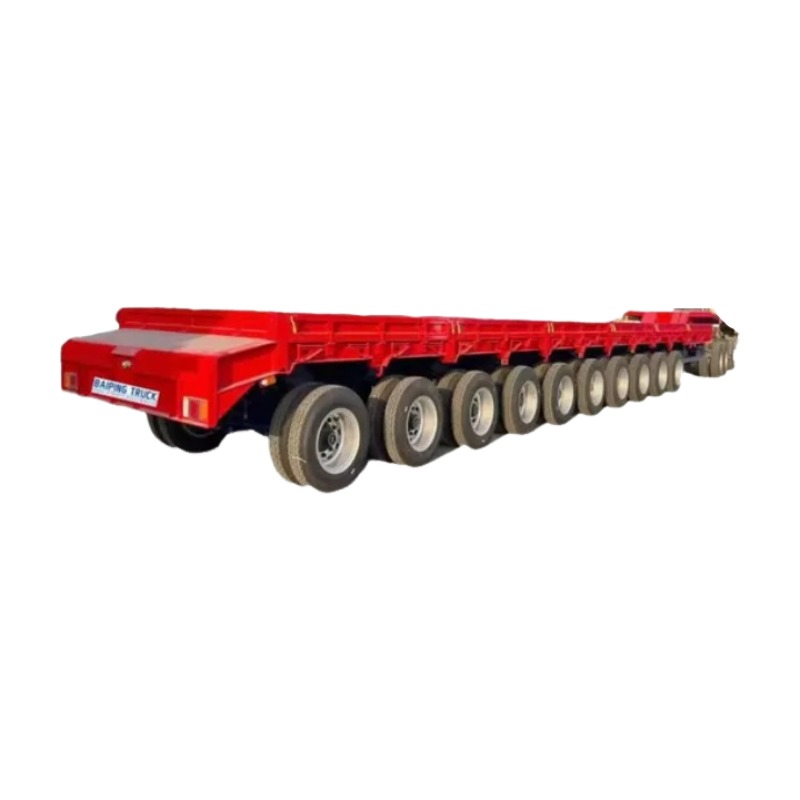

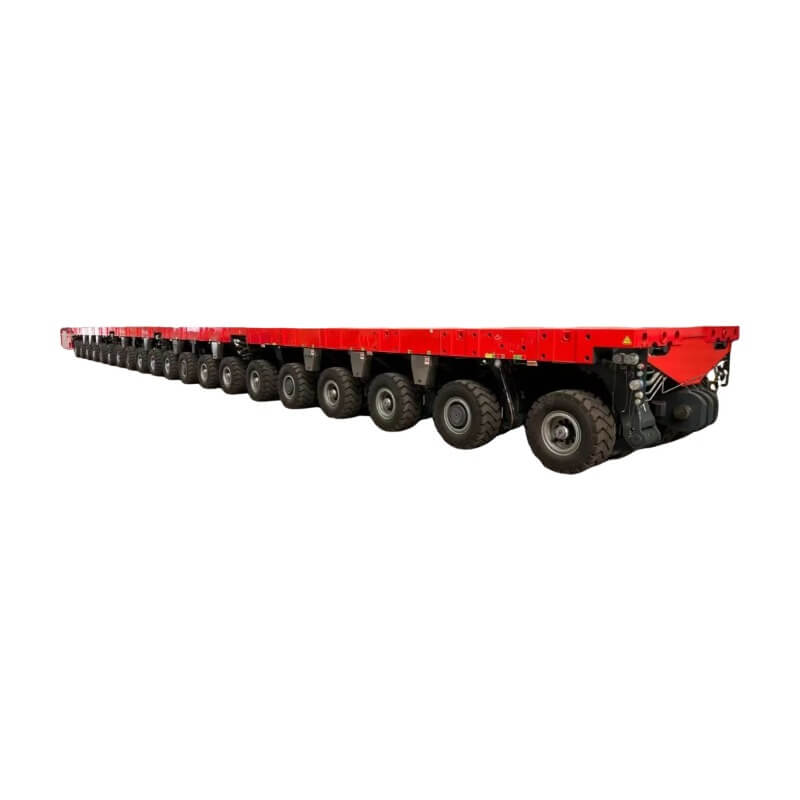

High Capacity 300 Ton Multi-Axle Modular Trailer with Hydraulic Steering System
Superior Load Capacity – With a 300-ton load capacity, it easily handles the transport challenges of large machinery, wind turbines, and prefabricated components.
Advanced Hydraulic Steering System – Precision electronic control ensures smooth and precise steering, even in complex road conditions and tight turns.
Modular Design – Flexible configuration options allow for adjustments in length, width, and number of axles to meet specific project requirements.
Optimized Axle Configuration – Evenly distributes weight, minimizing road damage and improving maneuverability.
Modular Trailer Specifications
Type | Modular Trailer |
Load Capacity | 300T |
Certification | ECE, GCC, CE, ISO9001, DOT |
Tread | 2240mm |
Wheel Base | 7000-8000mm |
Types of Suspension Systems | Hydro-Pneumatic Suspension |
Grade | Heavy Duty |
Axle Number | 24 |
Tire Number | 98 |
Material | Q690d |
ABS Anti-lock Braking System | ABS Anti-lock Braking System |
Tire Model | 215/75r17.5 |
Max Rotation Angle | ±45° |
Specification | 22500mm*3000mm*1080±280mm |
