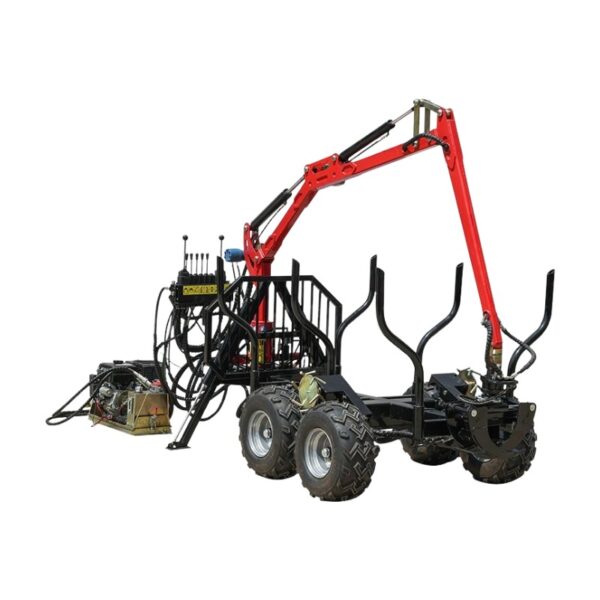

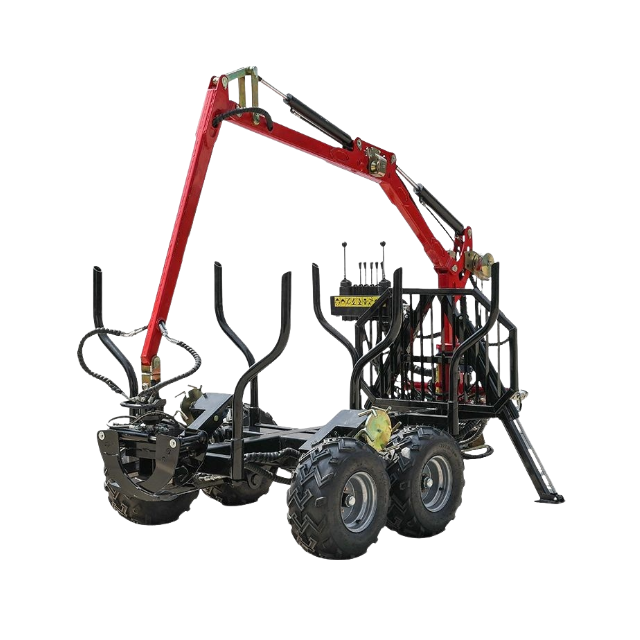

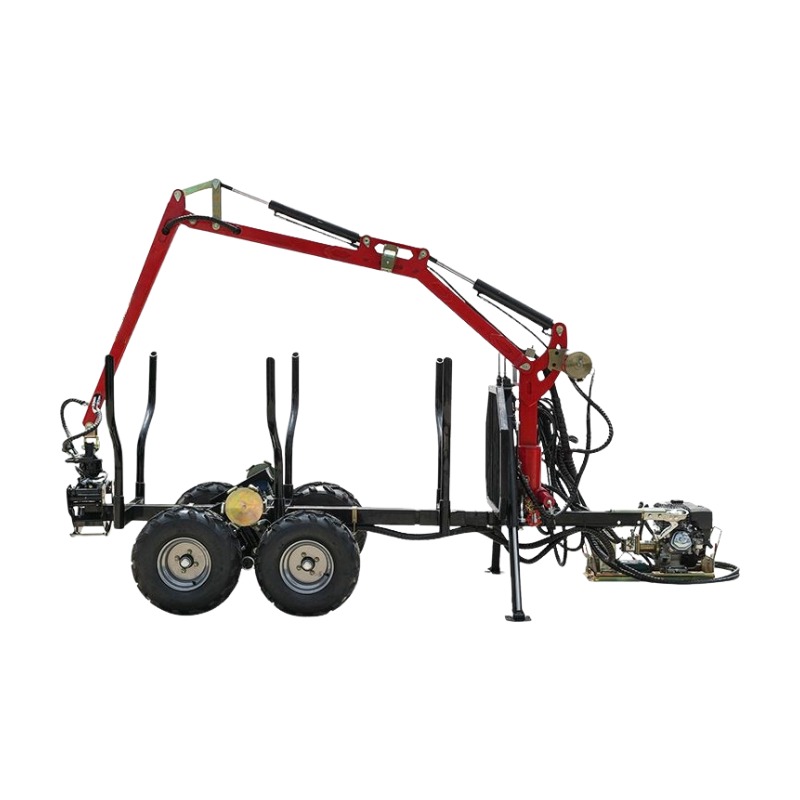

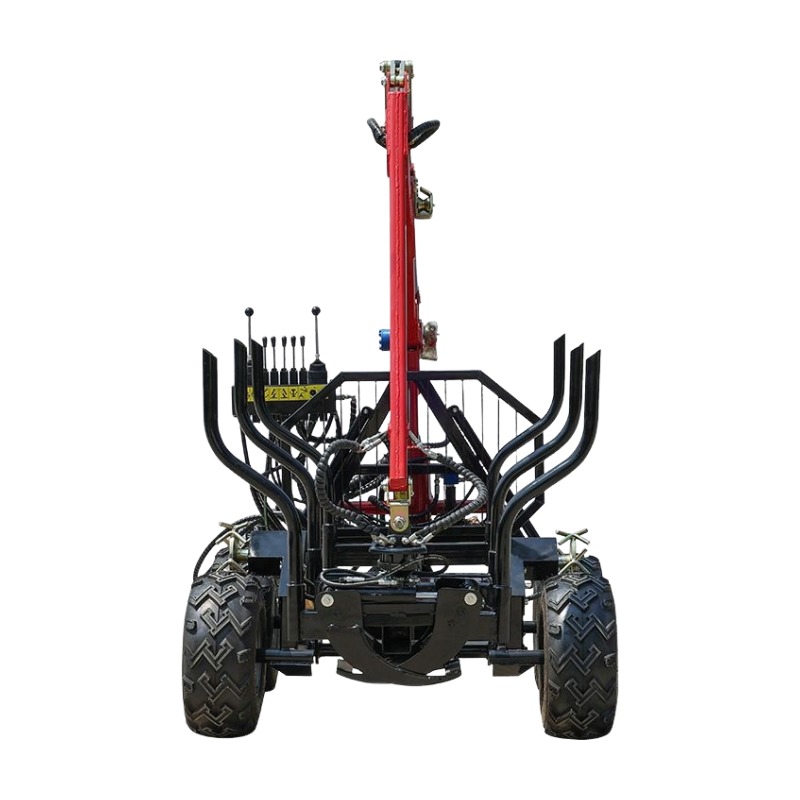

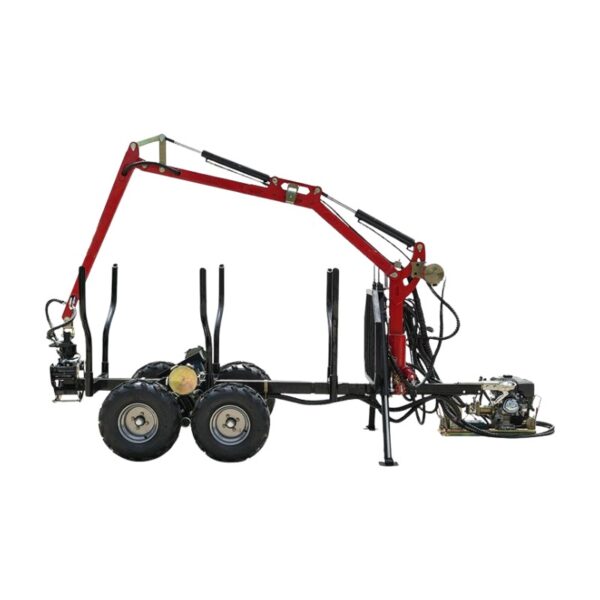

Towable Log Trailer With Grapple For ATV Wood Loading
Powered Grapple Loading: Our log trailers feature an integrated hydraulic grapple arm that does the heavy lifting for you. From the comfortable seat of your ATV, you can easily grab, lift, and secure logs directly to the trailer.
Towable ATV: Seamlessly connects to your ATV or tractor, and is built for off-road use, easily tackling trails, woods, and uneven terrain.
Designed for Timber Hauling: Featuring a durable, optimized bed and log holders, it securely supports your load during transport. Transport more timber with fewer trips, maximizing your productivity.
Log Trailer Specifications
| Type | Log Trailer |
| Certification | CE |
| Power Source | Gasoline |
| Oil Pump | 16mpar, 3.4ml/R |
| Engine | 6.5HP Gasoline Engine |
| Lifting Capacity of Max.Arm Reach | 200kg |
| Length of Crane Arm | 4.3m |
| Fuel Tank | 4L |
| Max Loading Capacity on Trailer | 2000kg |
| Remote Control Area of Hydraulic Winch | 30m |
| Hydraulic Oil Tank | 12.9L |
| Wheel | 25 X 11-12 |
| Dimension | 2200X1000X1070mm |
| Max. Lifting Height | 5.3m |
| Working Temperature | -30c to 80c |
