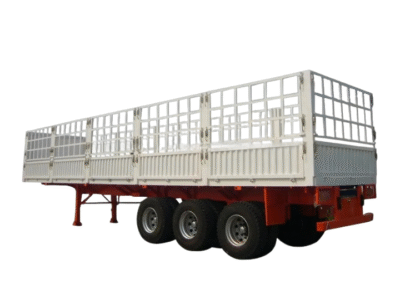

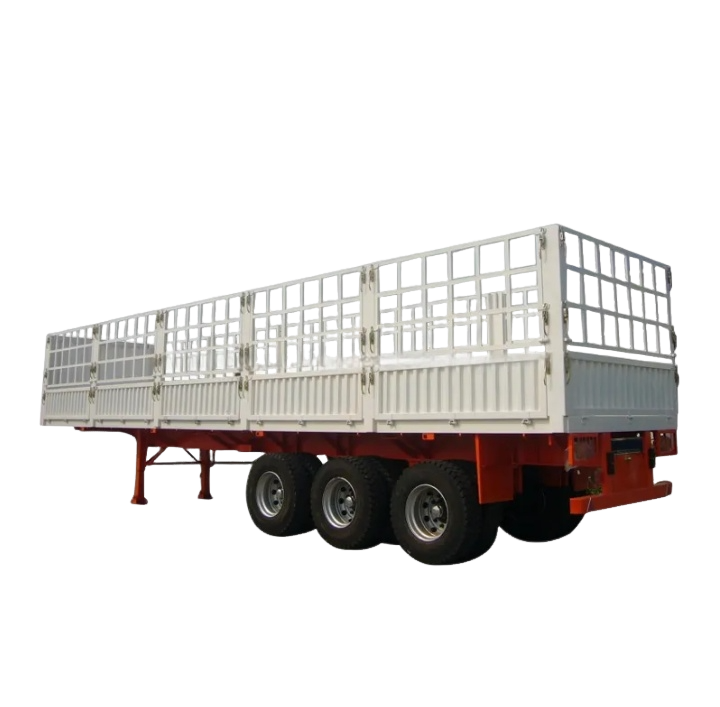

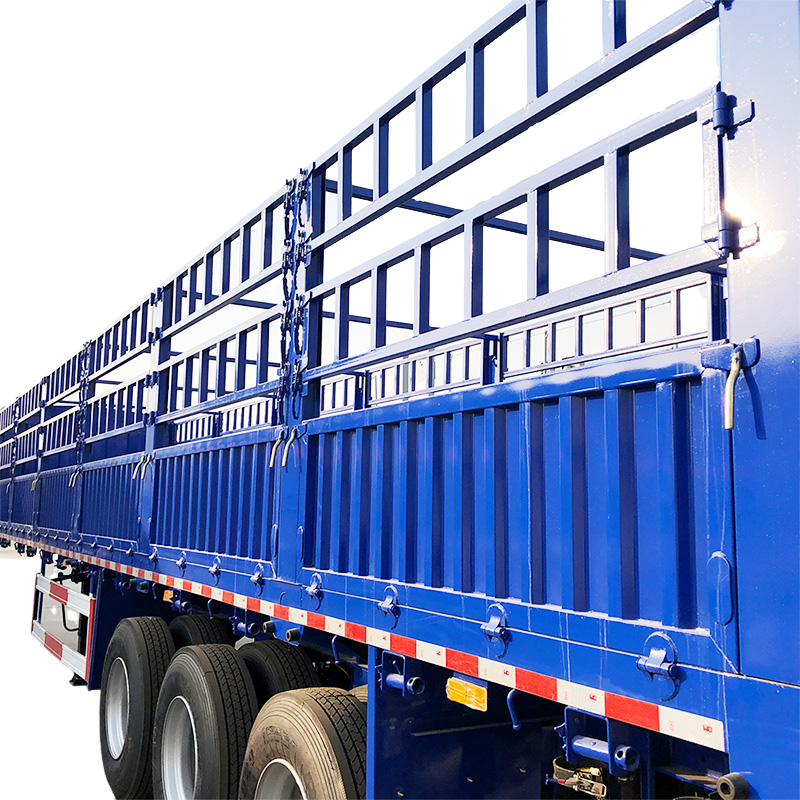

Three axle 40-ton bulk cargo fence semi-trailer

General Information

Our fence semi-trailers can carry up to 40 tons, perfect for moving bulk items like farm products, building supplies, steel, and other heavy goods. The three axles keep it stable on roads, and the strong fence walls protect your cargo while moving. It’s a top choice for heavy hauling needs. We build each trailer with tough steel and exact manufacturing. According to our experience, these trailers don’t just handle your shipping jobs – they make your whole supply chain better. Welcome interested users to negotiate with us!

Payload:

40,000kg

Rim:

9.0-22.5

Wheelbase:

1310mm

Landing gear:

external 28tons

Detailed Specs

Specification
Type fence semi-trailer Payload 40,000kg
Tare weight 73,00kg Wheelbase 1310mm
Floor 3 mm diamond steel plate Cross/side beam Q235, channel steel
Toolbox 1piecs Axle 3
Leaf spring 90(W)mm*13(thickness)mm*10Layers Dimension 13300x2500x1550mm
Rim 9.0-22.5 Tyre 12R22.5 ,13pcs,Triangle tire
Kingpin JOST King Pin bolt-in type 50mm Landing gear external 28tons
Suspension Mechanical suspension Toolbox 1piecs
Main beam Beam height 500mm, upper plate 14mm, bottom plate double 8mm, middle plate 16mm Welding CO2 Arc welded
Brake system WABCO valve Dual-line braking system
Note This specification is for reference only. We can customize it according to your needs.



Our three axle 40-ton bulk cargo fence semi-trailers is ideal for transporting bulk cargo such as minerals, farm products and metal products. It has strong fences and can carry heavy loads. Our fence semi-trailers are perfect for long-distance transport and easy loading and unloading. They are suitable for companies that need to transport large amounts of bulk cargo safely and cost-effectively. According to our customers’ feedback, many companies find these trailers to be good value for money. Here are some common usage scenarios:

  1. Agricultural product transportation
    Fence semi-trailers are widely used in the agricultural sector, mainly transporting agricultural products such as grain (such as wheat, corn), feed, fertilizer, vegetables and fruits. Its open cargo box design is easy to load and unload, while the sturdy structure can effectively prevent the cargo from tipping over or being damaged, ensuring safety during transportation. In addition, its large-capacity design reduces the cost per ton of transportation, which is particularly suitable for long-distance transportation of bulk agricultural products. Our customers found that the payload of our equipment increased by 22% compared to the old equipment, thereby increasing the profit per ton-mile.
  2. Steel and Metal Products Transportation
    For long or heavy metal products (such as steel plates, steel pipes, aluminum, etc.) that need to be transported over long distances, our fence semi-trailers provide an ideal solution. Their structure can firmly fix the goods to avoid damage caused by vibration or bumps, and their large capacity design improves transportation efficiency.
  3. Mining Operation Support
    Our fence semi-trailers are designed to withstand the harsh conditions of mining with ultra-rugged parts that resist impacts from rough materials. The suspension system handles the bumpy mine roads while protecting the cargo and trailer from excessive vibration. Customers tell us that using our fence trailers in these tough operations reduces maintenance needs by 30%.
  4. Containerized Freight Transport
    For shipping operations, our fence semi-trailers fit standard containers and have a strong chassis for focused weight points. Sturdy landing gear keeps containers stable during loading. Better brakes stop safely even with full loads. These trailers work with regular container locks for smooth multi-type shipping.
  5. Transport of emergency and disaster relief supplies
    In emergency situations, our fence semi-trailers are often used to quickly transport disaster relief supplies such as tents, food, drinking water, and medicines due to their efficient loading and unloading capabilities and large-capacity design. Their sturdy structure ensures the safety of the goods while quickly responding to disaster relief needs.

 Low fuel consumption

We helped DANGOTE company save 20,000 liters of diesel per truck over three years of transportation, with the fuel consumption controlled at a minimum of 4-4.5 kilometers per liter (for a 30-ton semi-trailer load).









Maintenance costs reduced

High-quality products with annual maintenance costs as low as USD 0.04 per kilometer.





Other Semi-trailer

Three axle heavy duty lowbed semi-trailer

Model & Specification of Commodity

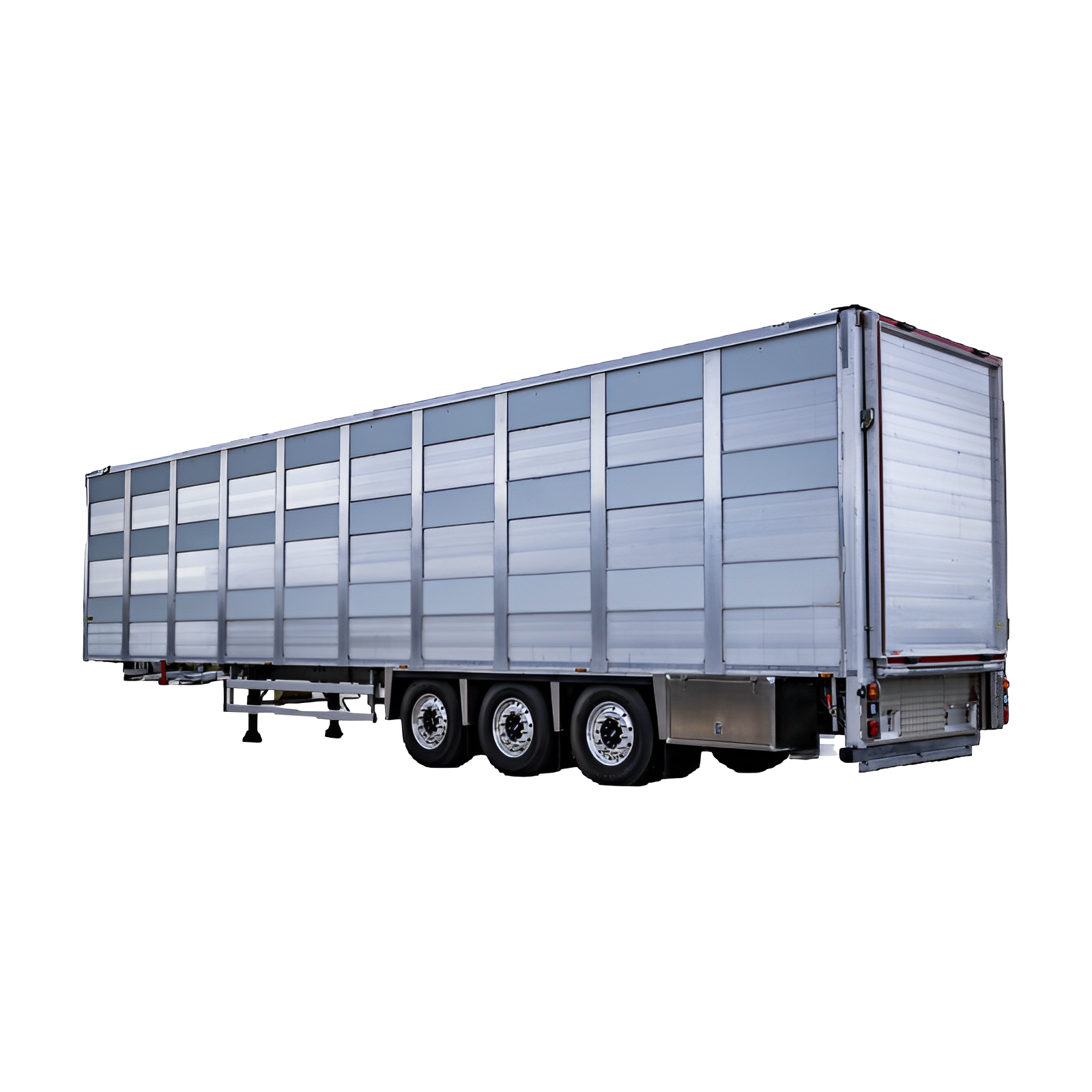

Three axle livestock semi-trailer
