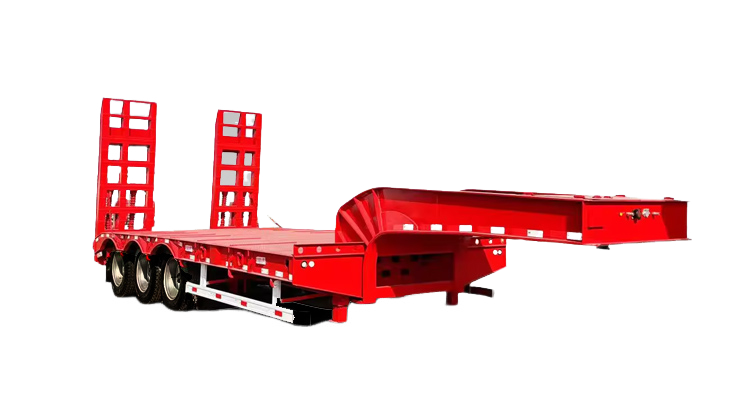

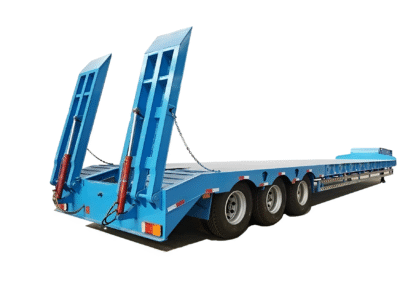

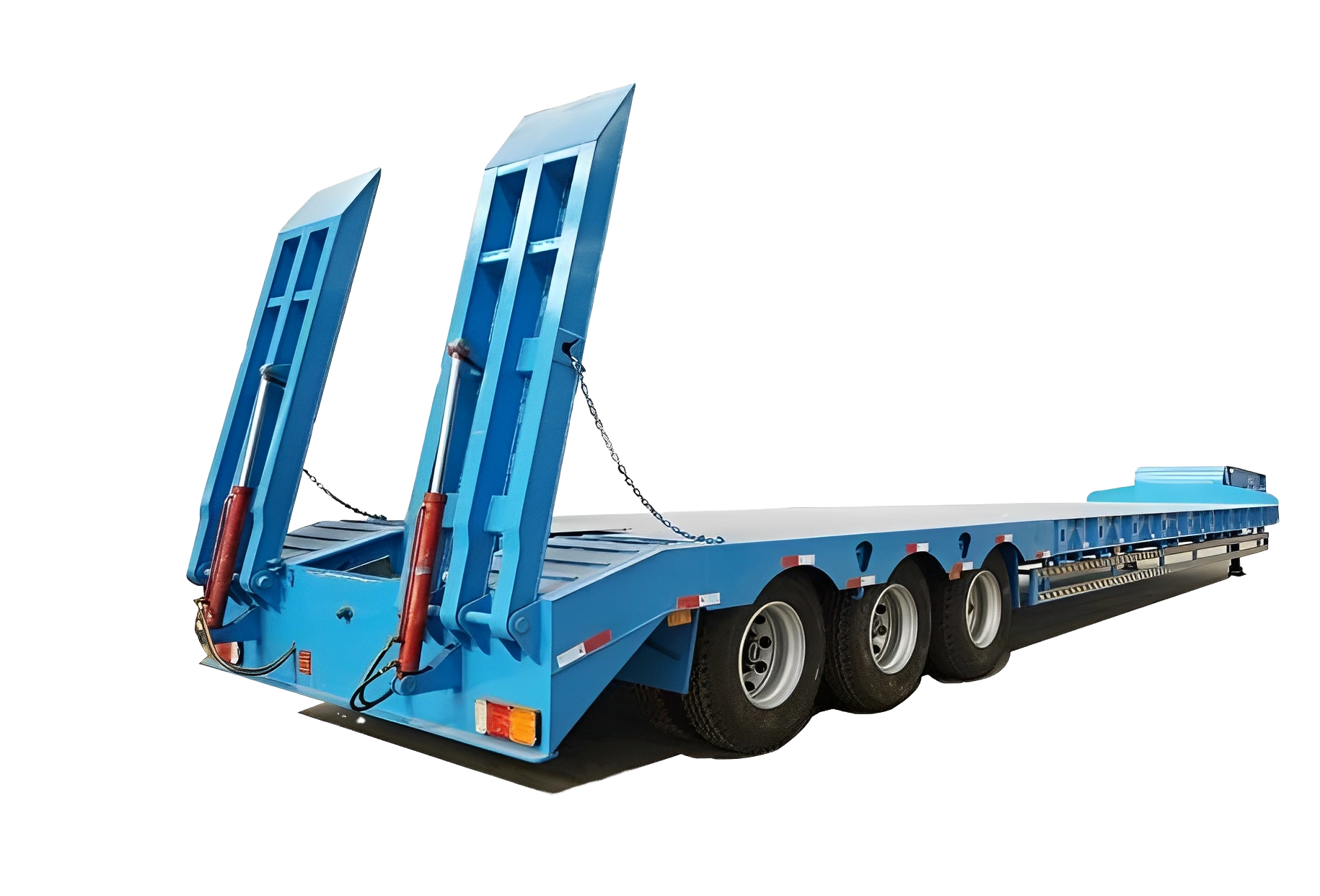

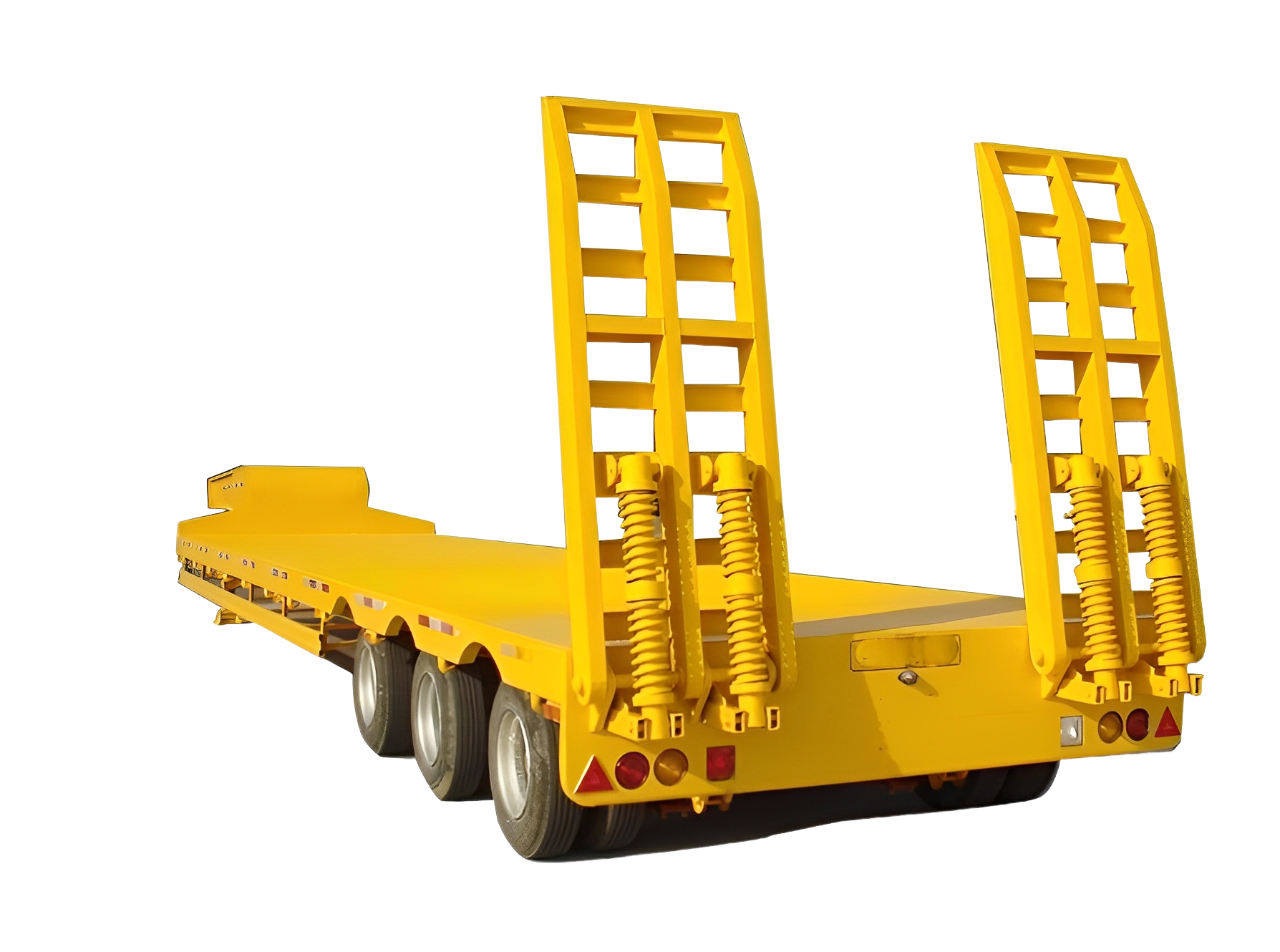

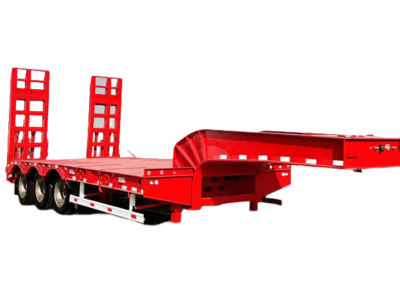

Three axle 80 ton heavy duty lowbed semi-trailer
General Information
Our 80 ton heavy duty lowbed semi-trailer is designed for demanding transport tasks, combining superior design with rugged materials to deliver optimal performance even in demanding transport tasks.Each one has a strong frame, well-built axle systems, and decks we can change to fit your big equipment needs. They carry more than standard weight limits. These tough trailers work well and meet all rules on different roads and in all weather. They help you move heavy loads without problems.Interested users are welcome to click the button below to contact us!
Tread:
2240mm
Load Capacity:
80T
Specification:
16000*3000*1650mm
Rim:
8.00-20 / 8.5-20 / 9.0-20
Detailed Specs
Type | Lowbed Semi-trailer | Certification | CCC |
Tread | 2240mm | Types of Suspension Systems | Trailing Arm Type |
Axle Number | 3 Axles | Material | Steel |
Load Capacity | 80T | Wheel Base | 8000-9000mm |
Grade | Heavy Duty | Shape | Flatbed |
Tire Number | 12 Units | Specification | 16000*3000*1650mm |
Dimension (mm) | 13000*3000*3400mm | Tare Weight | 13T/16T |
Rim | 8.00-20 / 8.5-20 / 9.0-20 | Tire | 8.25R20/10.00R20/11.00R20/12.00R20 |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer | Main beam | Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm |
ABS | Optional | Receptacle | 7 ways |
Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
*This specification is for reference only. We can customize it according to your needs.
The three axle 80 ton heavy duty lowbed semi-trailers to be a top choice for moving big, heavy loads. The flat deck makes loading large items easy. Its strong frame keeps loads safe while moving. Thanks to its high weight limit and good design, this trailer works great for moving machines, building gear, factory items, and other big cargo across many types of ground. Here are some of the outstanding performances of this lowbed semi-trailer:
- Heavy Construction Equipment Transport
I’m proud of our three-axle 80-ton lowbed semi-trailers for moving excavators, bulldozers, and big construction equipment. Our strong deck with its load system stops warping even with off-balance loads. The supports keep it stable on rough ground during loading. Our customers tell me they move equipment 30% faster and see much less damage since using our trailers. - Mining Industry Applications
Mining companies use our sturdy lowbeds to move crushers, screeners, and mining vehicles over rough ground. The suspension with hydraulic adjustments keeps the right deck height on any surface. The strong frame stands up to harsh mining sites. We’ve added special tie-down points for mining gear to keep loads steady. Users report working in temps from -40°C up north to +50°C in deserts with no failures. - Energy Sector Equipment Movement
Energy firms use our 80 ton lowbed semi-trailers to move transformers, turbine parts, and odd-shaped energy gear. We can adjust the width for big loads while following all rules. Our securing system with load sensors keeps vital parts stable, protecting gear worth millions. The precise build keeps the trailer strong even with heavy loads, and stops stress points where weight is focused. - Pre-Cast Concrete and Structural Element Transport
Construction firms count on our lowbeds for moving large concrete pieces, steel parts, and building modules. The strong center beam stops bending even with dense concrete, and our many tie-down points stop loads from shifting. You can level the suspension to keep any load stable. Builders tell me they can move bigger pre-cast pieces, cutting on-site work time and finishing projects faster. - Port and Maritime Logistics Operations
Ports and shipping companies use our heavy-duty lowbeds to move containers, maritime gear, and ship parts in ports and beyond. Our rust-proof coating works great in salty air, and the strong landing gear handles frequent use in ports. These trailers turn easily in tight spaces thanks to our steering design, making it easy to drive through busy ports. Clients report 25% better transport efficiency after adding our trailers. - Special Event and Project Logistics
The heavy duty lowbed semi-trailers provided by our company are suitable for the transportation of materials for stage construction. We can adjust the configuration according to the special size of the cargo. Event companies and project managers use our trailers to move stage equipment, special machines, and one-of-a-kind items that must arrive safely. The stable, smooth ride cuts down on vibration, keeping valuable cargo safe the whole trip.
Low fuel consumption
Maintenance costs reduced
