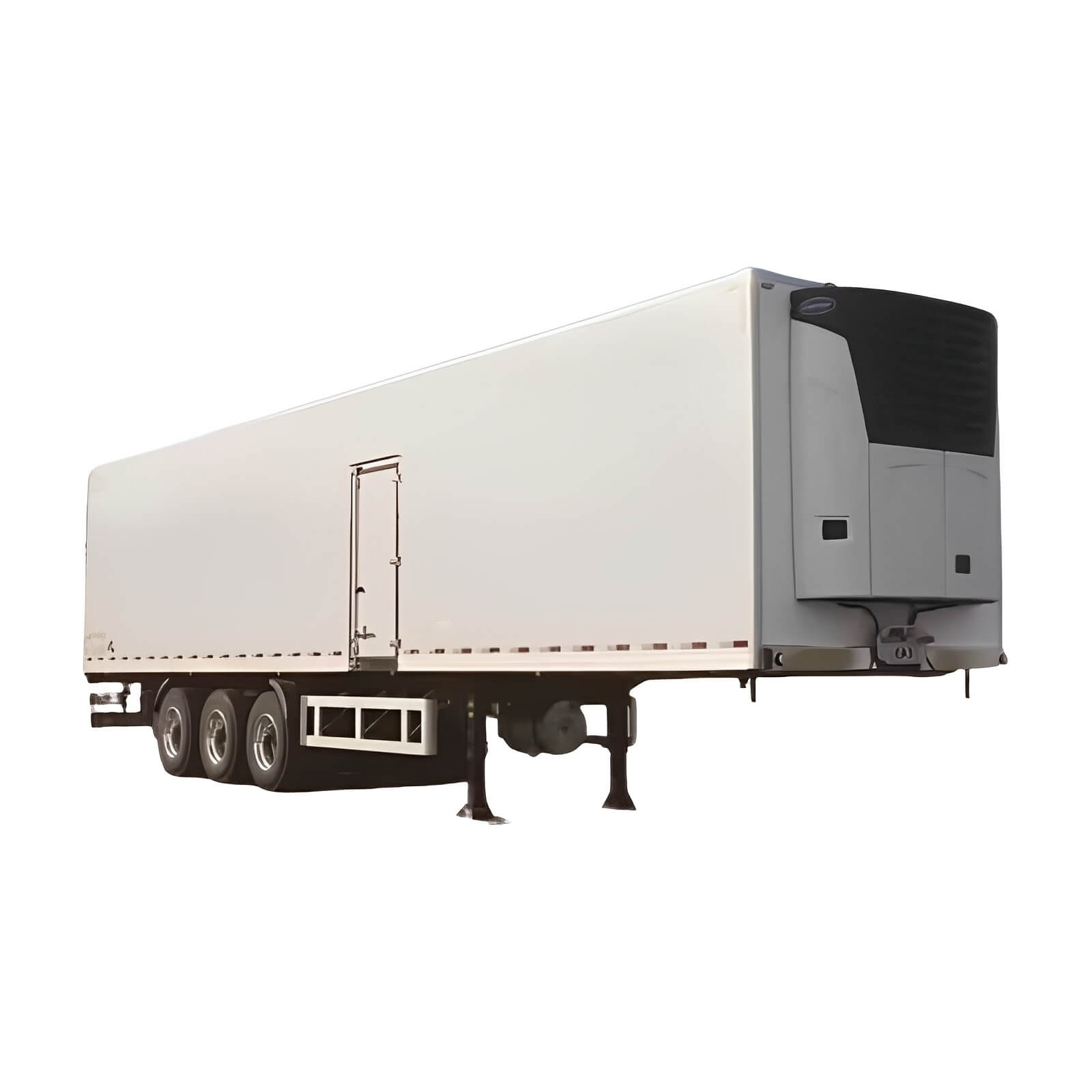

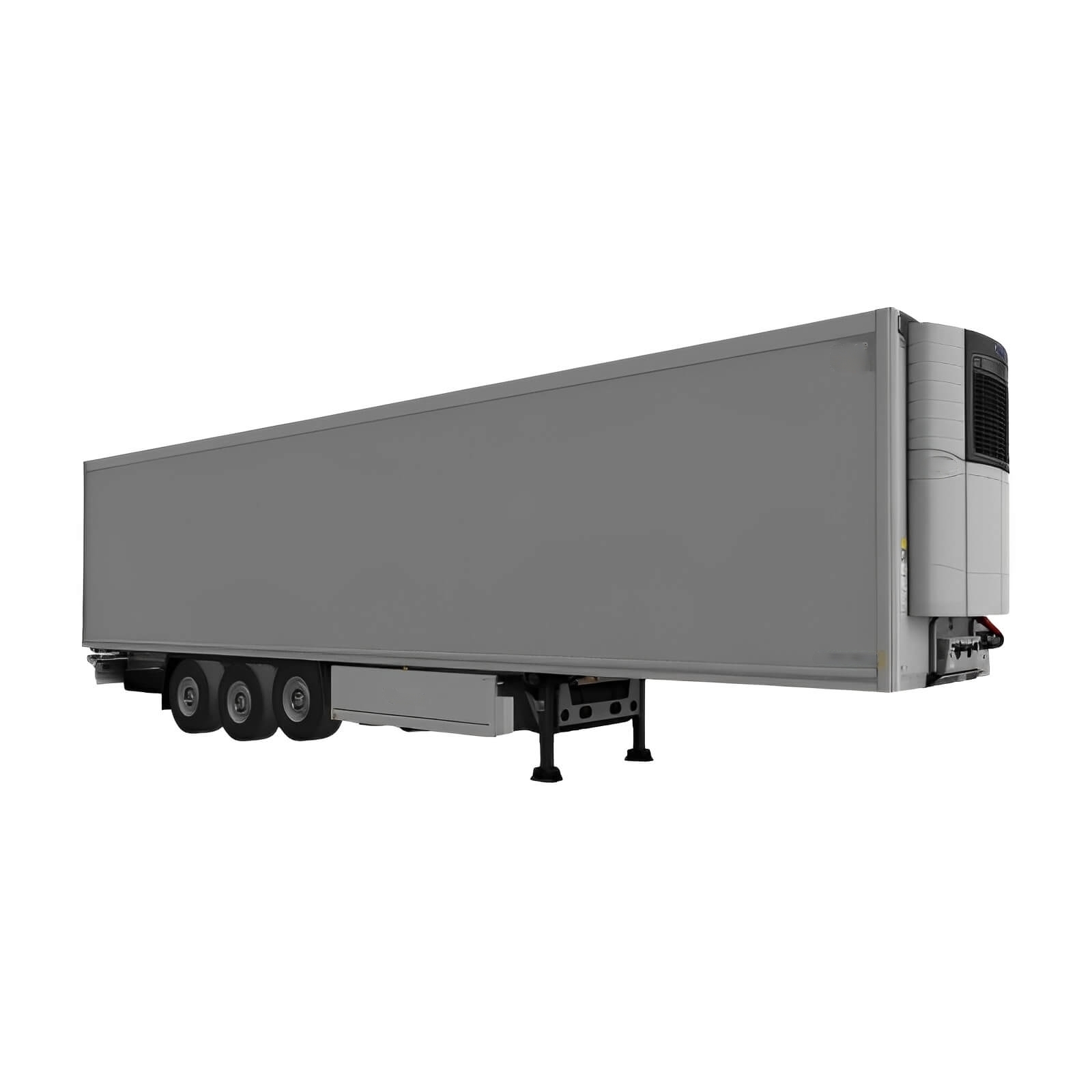

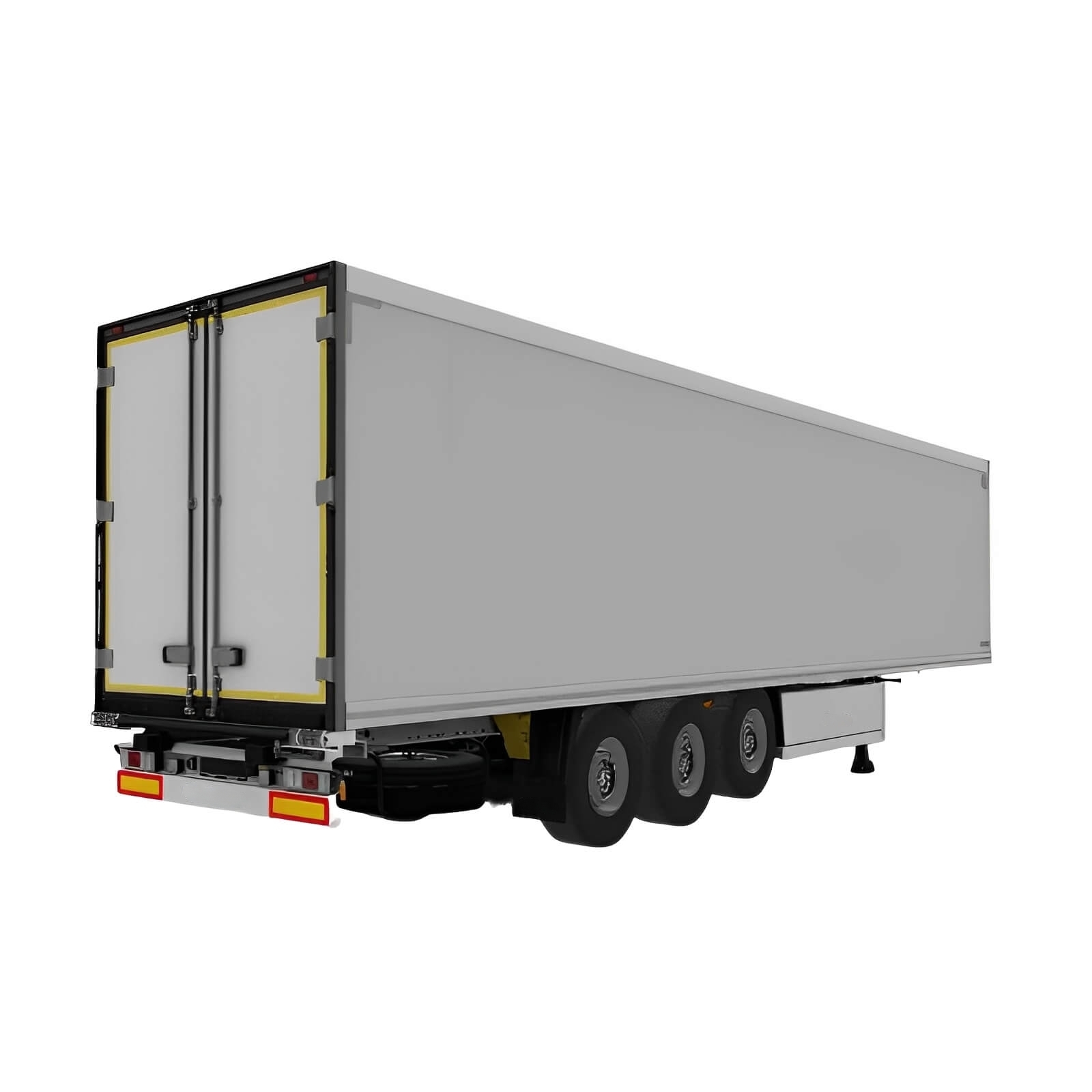

Custom High Quality 3 Axle 48ft Refrigerated Semi Trailer

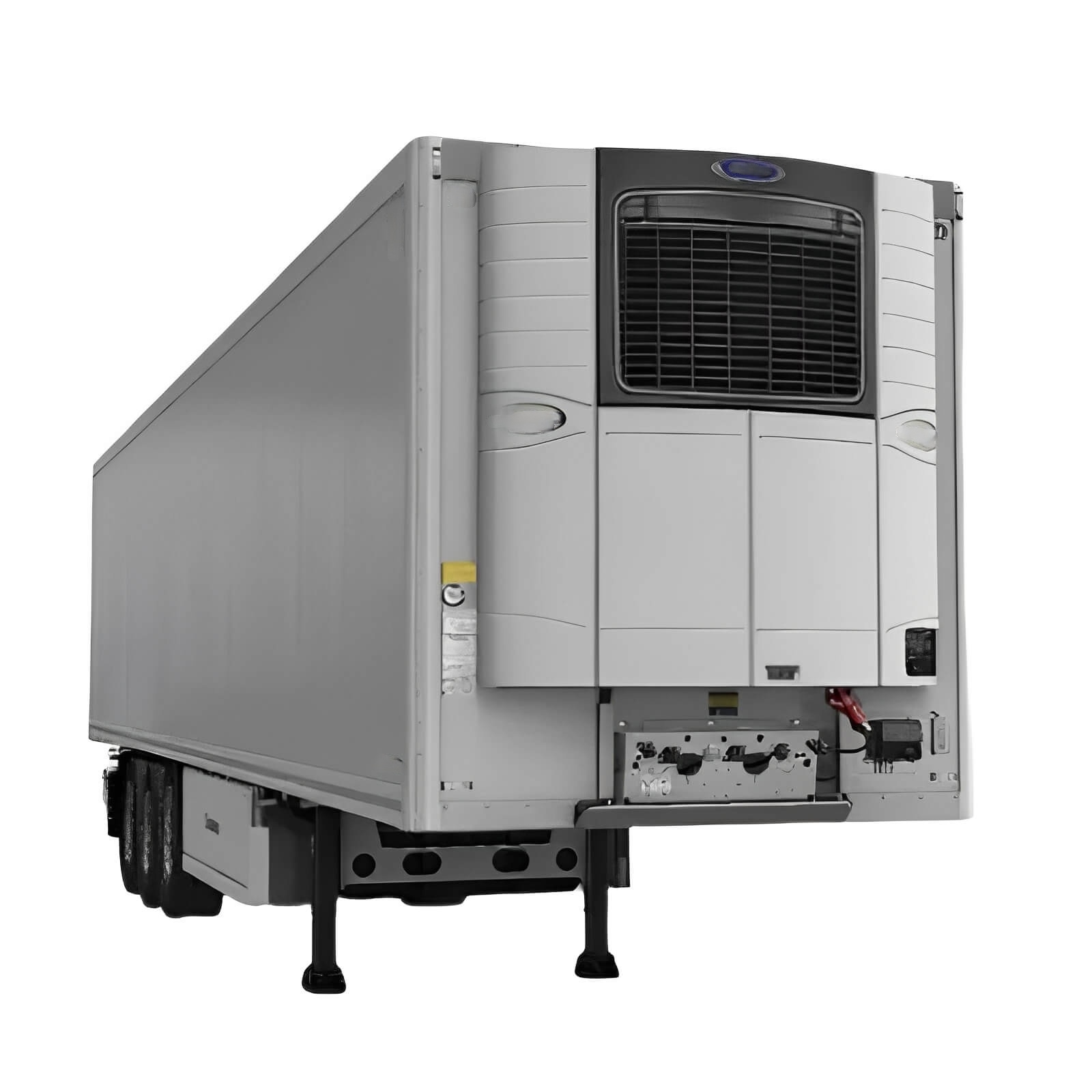

- Expert in precision temperature control: Our refrigerated semi trailer equipped with a top-notch refrigeration system, it ensures that the temperature inside the cargo compartment is accurately and stably within the range of -20°C to +25°C, perfectly adapting to the stringent requirements of various temperature-sensitive goods such as fresh food, frozen products, and medicines.
- Golden size efficiency: 48-foot standard length maximizes the use of transportation space and significantly increases the single load volume, making it an ideal choice for pursuing transportation cost-effectiveness and operational efficiency.
- In-depth customization solutions: Beyond standard configurations, we provide a full range of customized services, covering body materials, insulation levels, refrigeration unit brands/power, interior configurations, etc., to ensure that the trailer perfectly fits your unique business scenario.
Refrigerated Semi Trailer Specifications
| Model | Refrigerated Trailer |
| Size | 11500*2200*4000 mm |
| Gvw | 40, 000kg |
| Tire Spec | 11.00-20 12pr |
| Tire No | 12 |
| Front/Rear Trace | -/1840mm |
| Pin Traction | 90# |
| Wheel Base | 7000-8000mm |
| Tread | 1820mm |
| Types of Suspension Systems | Air Suspension and Leaf Spring Suspension |
| Axle Number | 3/4/5/Customizable |
| Self-dumping | Customizable |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Material | Steel |
| Tire | 235/75R17.5*12 pcs |
| Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanksEmergency relay valve |
| Leaf Spring | 90mm(w)*13mm(T)*10 Layer |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light,two fire extinguisher |
