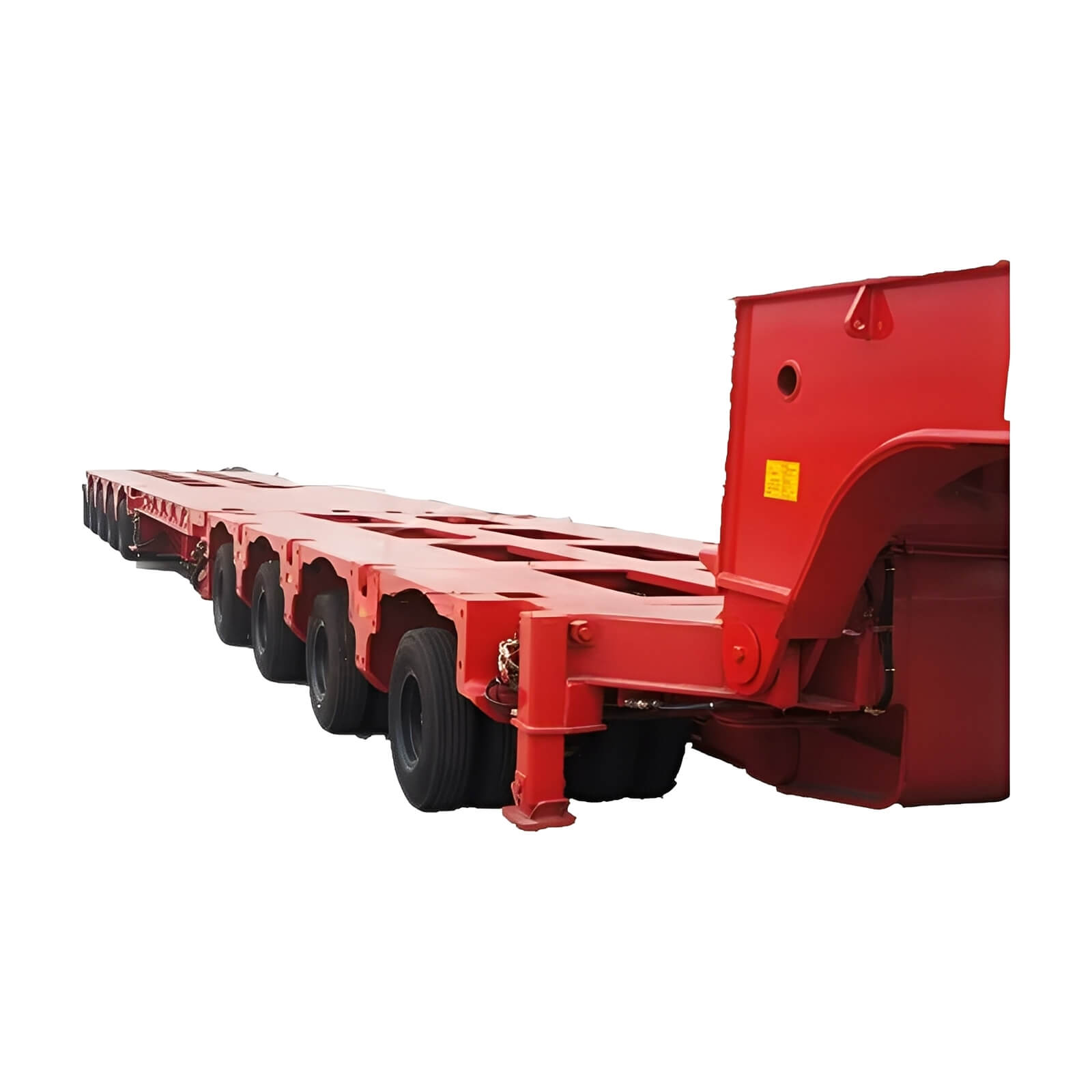

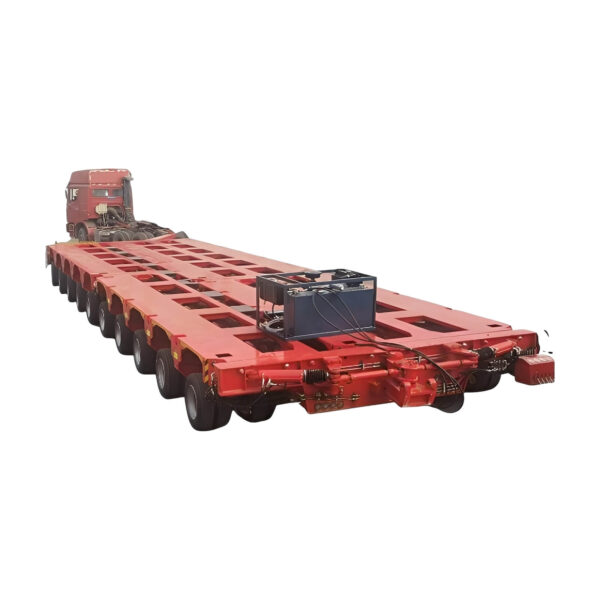

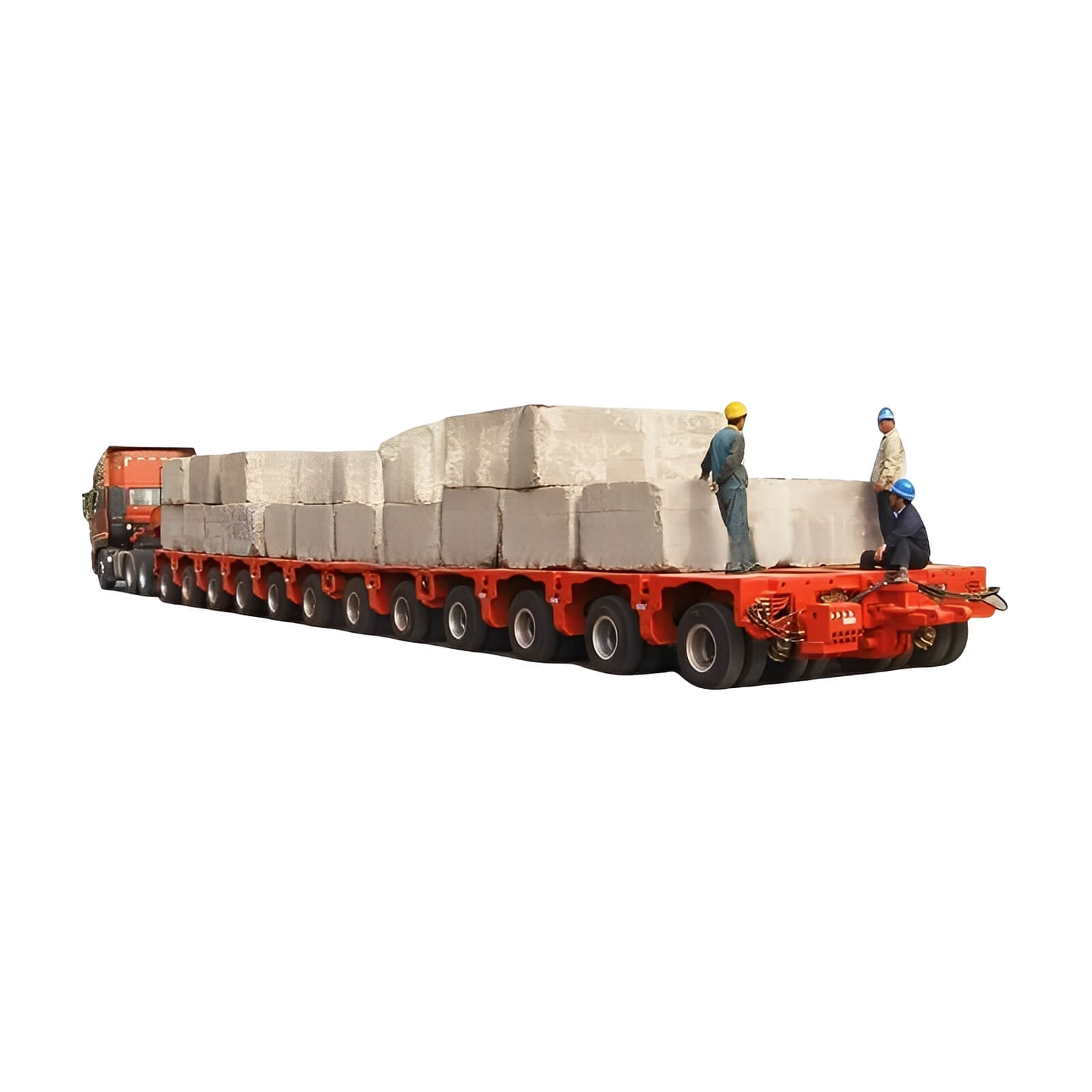

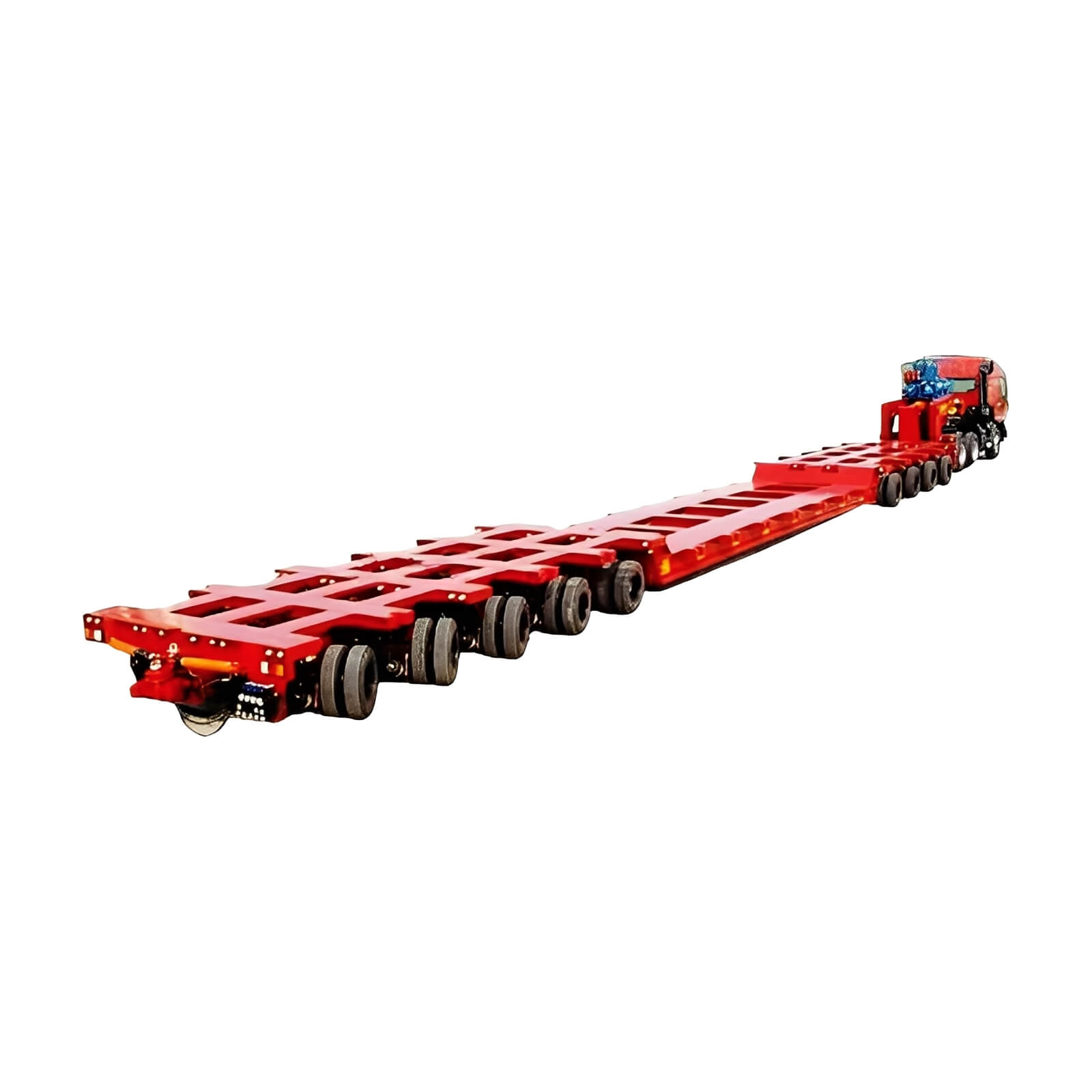

Heavy Duty Steel Modular Trailer for Shipyard, Machinery, and Equipment Transport
High Load Capacity
Our heavy-duty modular trailers are constructed from high-strength steel. When combined with multiple modules, they can safely transport oversized equipment and meet the heavy-duty load requirements of specialized industries such as shipyards and machinery plants.
Advantages of Modular Design
Flexible modular configurations allow for customized transport solutions based on cargo size and weight.
A quick-connect system makes installation and removal between modules simple and efficient.
Standardized interface design ensures compatibility with mainstream towing equipment and attachments.
Excellent Durability
Advanced surface treatments, including hot-dip galvanizing and special anti-corrosion coatings, are used.
All key components have passed 10,000-hour accelerated life testing.
Modular Trailer Specifications
Type | Modular Trailer |
Load Capacity | 50-150T |
Certification | CE, CCC |
Tread | 1820mm |
Wheel Base | 8000-9000mm |
Grade | Heavy Duty |
Shape | Flatbed |
Types of Suspension Systems | Leaf Spring Suspension/Air Suspension |
Axle Number | 10-48 Axles |
Tire Number | 40-192tyres |
ABS Anti-lock Braking System | ABS Anti-lock Braking System |
Material | Steel |
Loading Deck Height | 1175±300mm |
Width of Platform | 2990mm-3000mm |
Max Steering Angle | +/-55° |
Wheelbase | 1500mm |
Tire | 215/75R17.5 |
