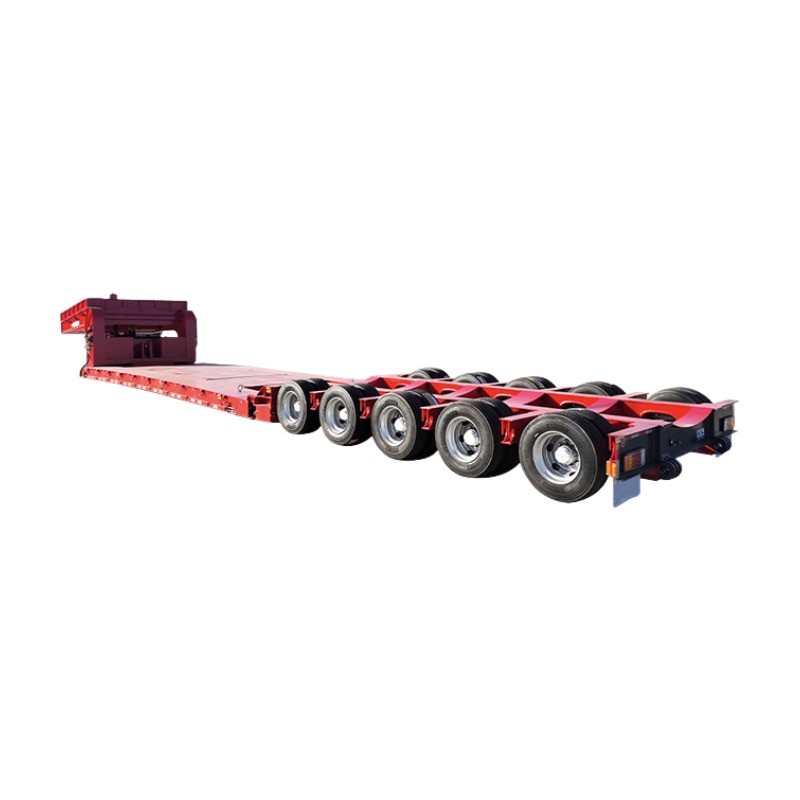

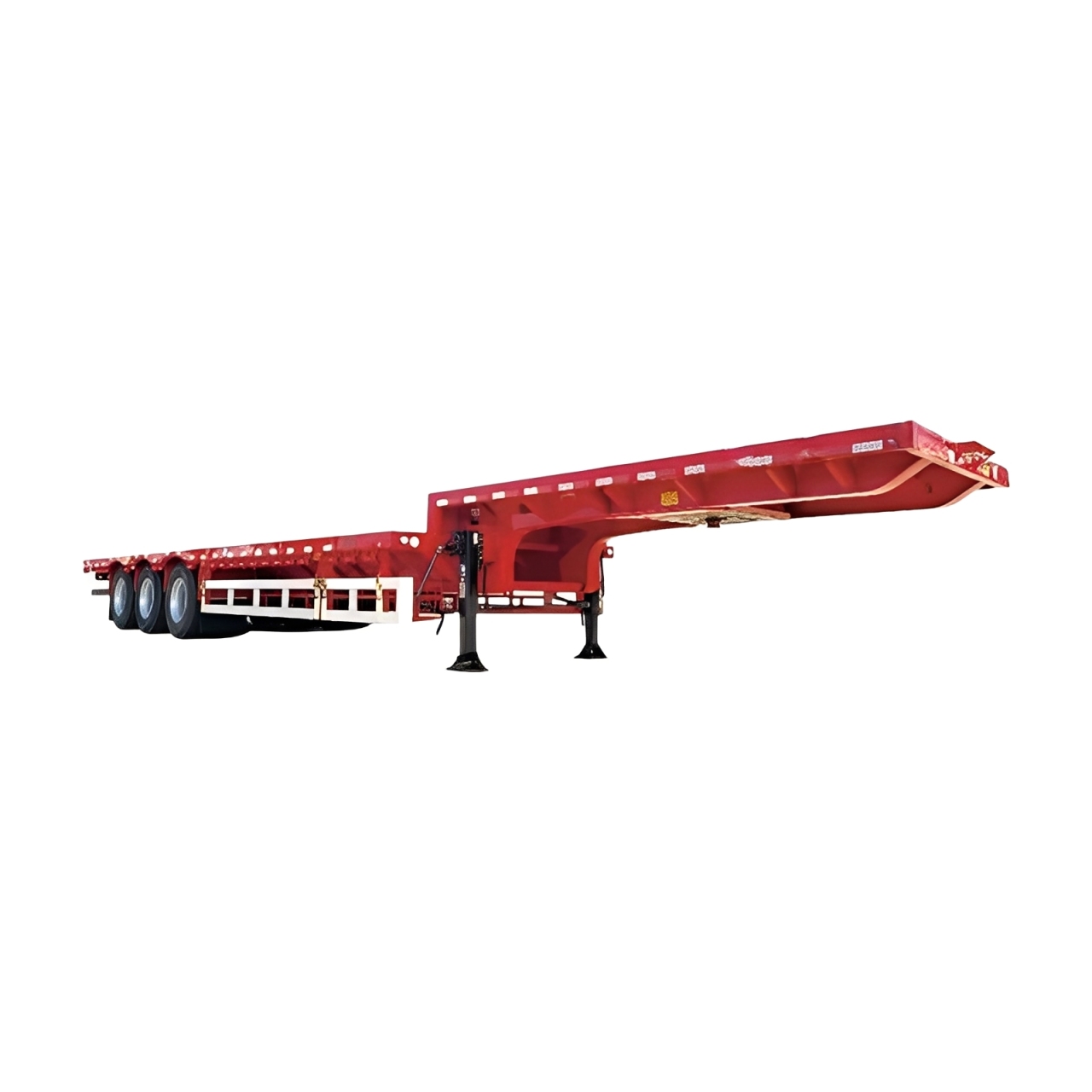

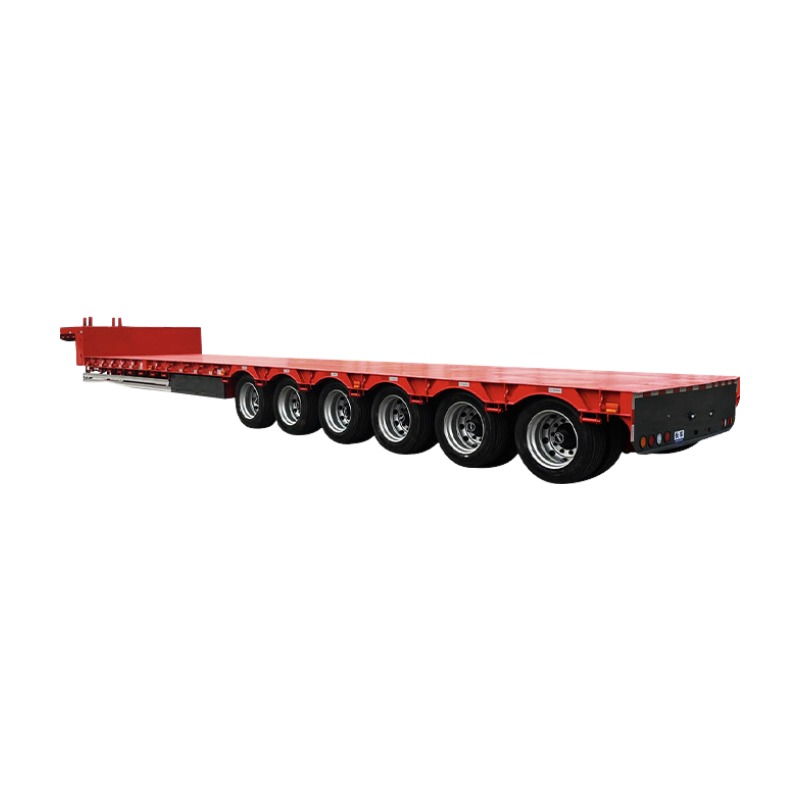

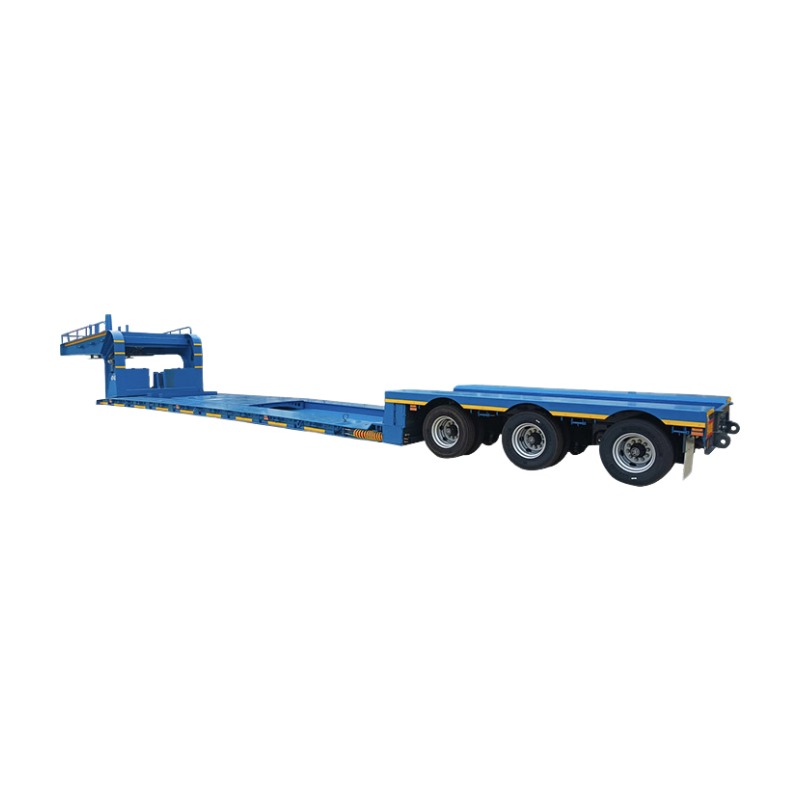

Hydraulic Suspension Modular Trailer for Oversized and Heavy Cargo Transport
Advanced Hydraulic Suspension System: Utilizing multi-point independent adjustment technology, it ensures smooth operation in all road conditions, effectively reducing the risk of vibration damage to cargo.
Reinforced Frame Structure: Utilizing high-strength steel and an innovative truss design, it provides exceptional durability and stability.
Ultimate Configurability: Its modular design allows for effortless customization in length and width. Combine multiple units to create a larger platform, perfectly tailored to the unique dimensions and weight distribution of any project cargo.
Modular Trailer Specifications
| Type | Modular Trailer |
| Load Capacity | 80T |
| Certification | CE、DOT |
| Tread | 1820mm |
| Wheel Base | 8000-9000mm |
| Types of Suspension Systems | Air Suspension |
| Grade | Heavy Duty |
| Axle Number | Customized |
| Tire Number | Customized |
| Material | Steel |
| ABS Anti-lock Braking System | ABS Anti-lock Braking System |
| Frame Main Material | Q460c |
| Rim | 8.0-20mm |
| Tyre Size | 11.00 R20 |
